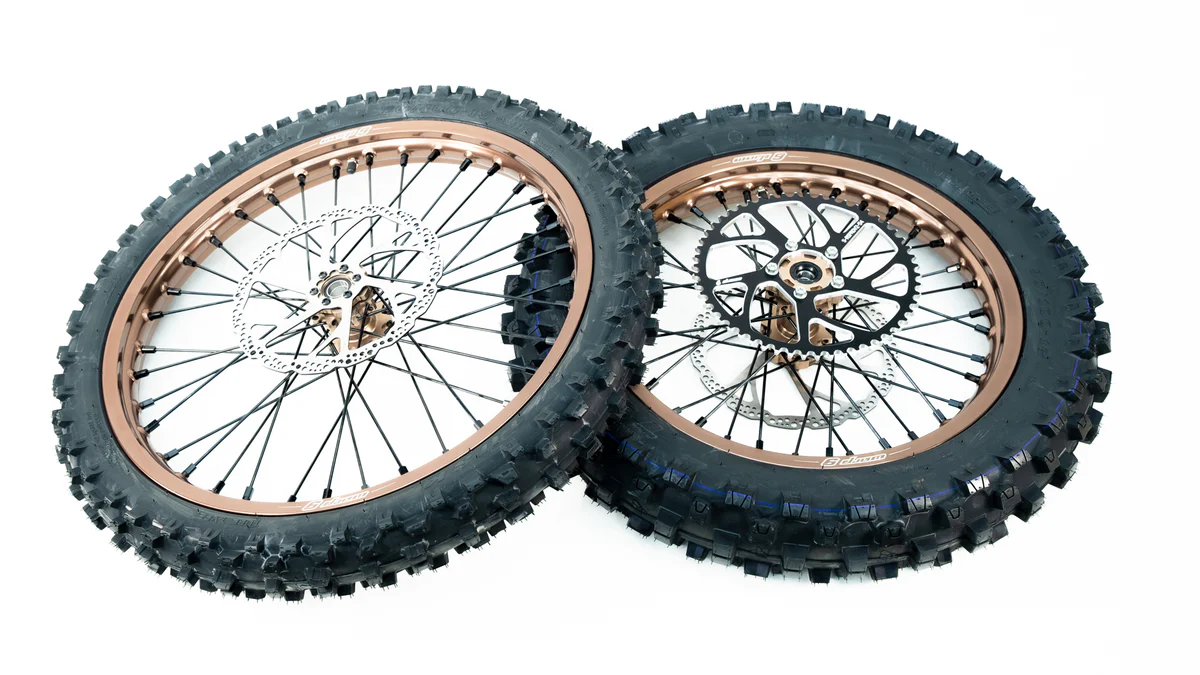

Warp 9 Anodized 16/19″ Complete Wheelset

Preserve the nimble, lightweight handling of your e-moto while dramatically boosting off-road cornering grip with the Warp 9 Anodized 16/19″ Wheelset. Specifically engineered for the Surron Light Bee X and E-Ride Pro SS / S, this performance setup pairs a 19″ front wheel with a smaller, wider 16″ rear wheel.

By dropping to a 16″ rear rim, you gain access to true mini-motocross tires with thicker sidewalls and wider contact patches. As a result, you get massive traction gains and improved pinch-flat resistance without sacrificing the snappy acceleration and play-bike feel that makes these lightweight machines so popular.

Warp 9 16/19″ Anodized Wheelset  – What’s Included in the Warp 9 Package

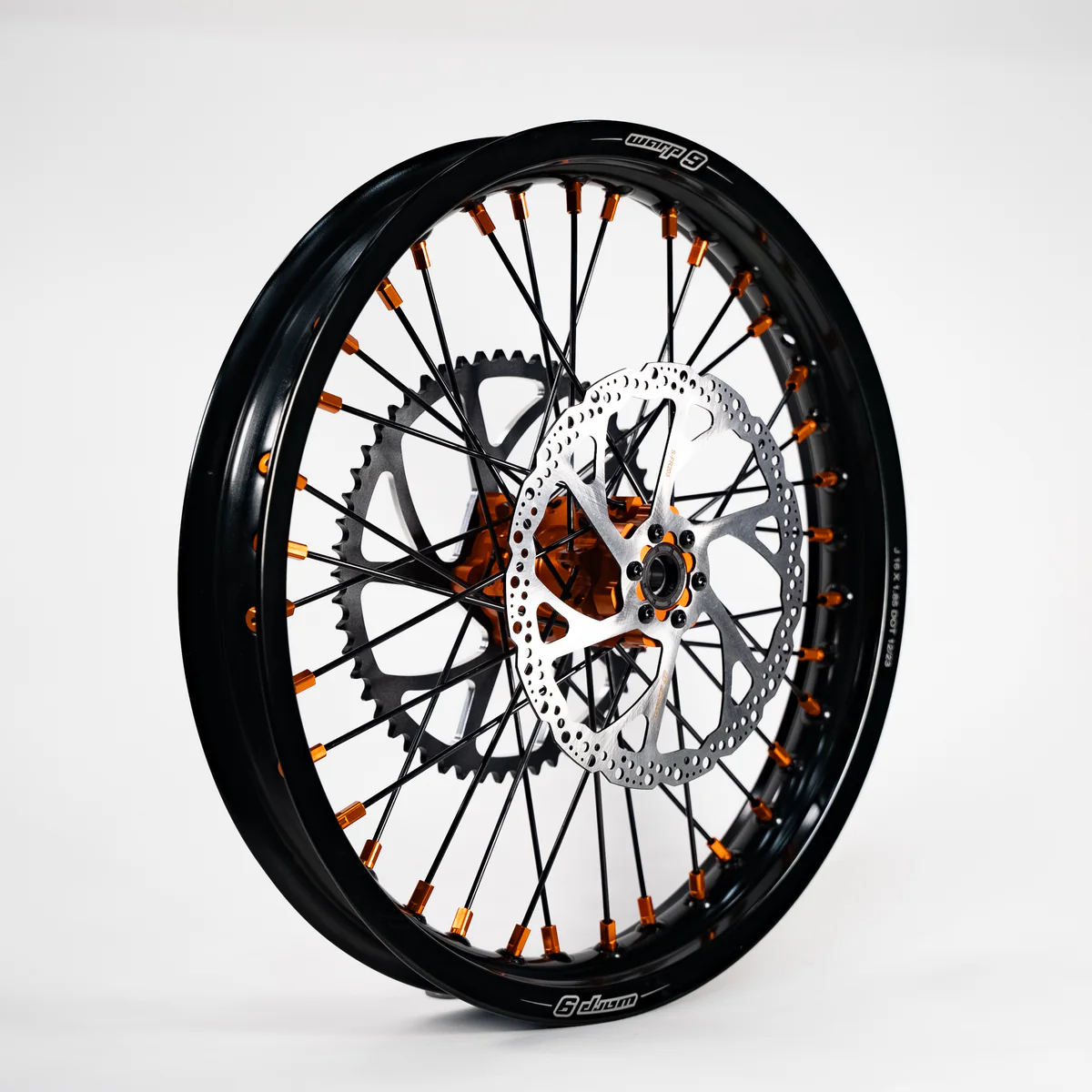

• Front Rim: 19″ x 1.60″ Warp 9 Anodized Aluminum Rim

• Rear Rim: 16″ x 1.85″ Warp 9 Anodized Aluminum Rim

• Rear Sprocket: Included 54T Warp 9 Sprocket for instant low-end torque.

• Brake Rotors: Front & Rear Brake Rotors with MTB-standard spacing.

• Hardware & Spacers: Axle spacers and mounting hardware included.

Pre-Mounted Tire Package Options

Select an optional tire package to receive a fully assembled, tube-installed setup delivered Ready to Ride (adds a 1–2 week shop build lead time):

Technical Specifications Matrix

Vehicle Fitment & Compatibility Notes

Pro Shop Performance Tips

• Chain Upgrade Required: Swapping to the included 54T sprocket requires a longer drive chain (110 links for Surron LBX / 112 links for E-Ride Pro).

• Tire Pressure Setup: Run 15 PSI in off-road 16″ rear tires to maximize tread contact and traction over obstacles.

• Track Record Holder: The 16/19″ setup is widely recognized for delivering the fastest track lap times on Surron and E-Ride platforms due to its unmatched power-to-weight ratio.

  Frequently Asked Questions

Why choose a 16/19 setup over an 18/21 wheelset?

The 16/19″ setup preserves the flickable, agile feel of your bike without adding excessive rotating mass. If you want maximum traction while keeping the bike feeling light and quick, 16/19″ is ideal. If you prefer a larger full-sized dirt bike feel, choose 18/21″.

Can I install a rim lock on these 16″ rear rims?

Warp 9 16″ rims are not pre-drill for rim locks out of the box. If your riding style demands a rim lock, you will need to drill the rim or opt for Tusk/Excel rims.

Do I need brake adapters for my Surron Light Bee?

Yes. To clear the 220mm oversized brake rotors included in the Warp 9 wheel package, you must install 220mm rotor adapter brackets on your front fork and rear swingarm.
