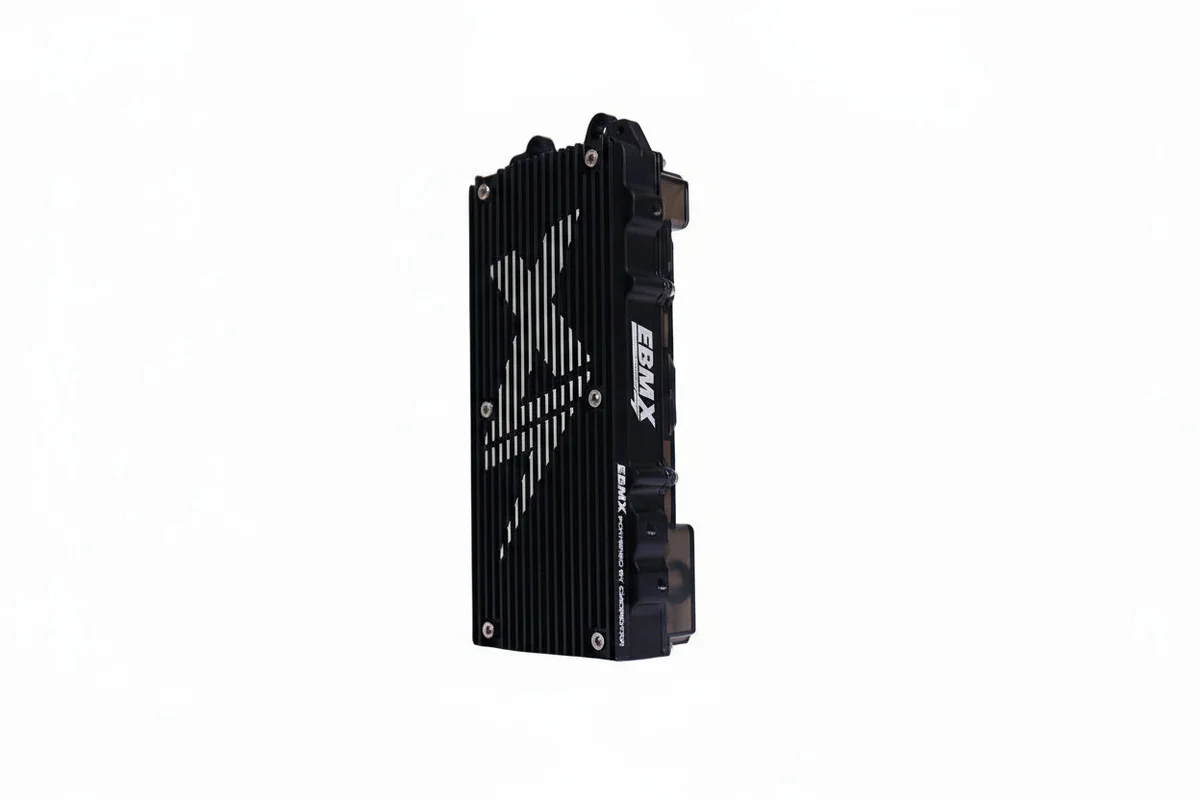

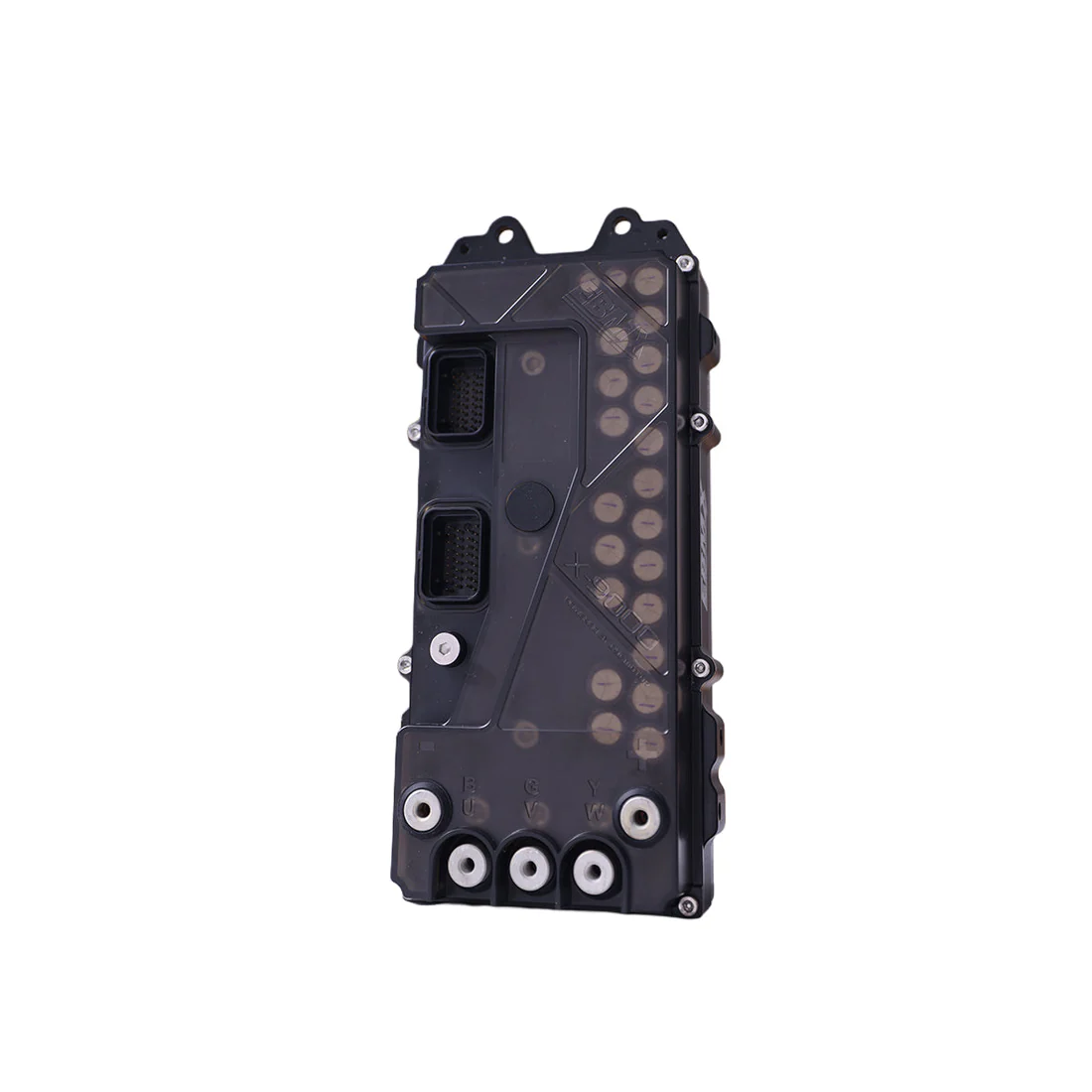

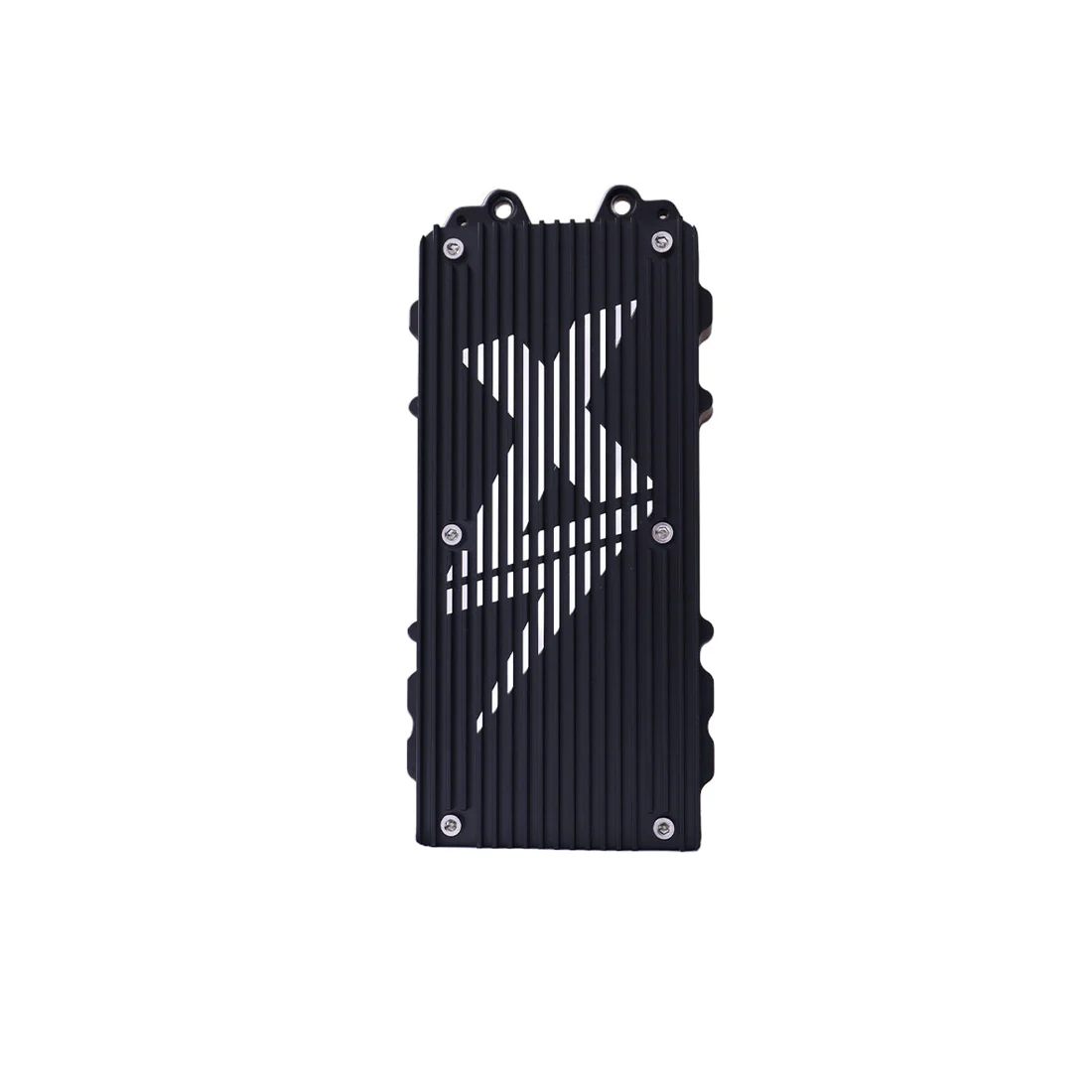

ALL NEW EBMX X-9000 V3 Controller

Built from the ground up for serious riders and racers, the EBMX X-9000_V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.

Whether you’re dominating urban streets, carving trails, or hitting the racetrack, the X-9000_V3 delivers unmatched power, precision, and customization.

EBMX X-9000 V3 App and Display Walkthrough

Power Meets Control

• 50kW Output | 1000A Phase Current | 1600A Burst
• 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
• Water-Cooling Option for race-level endurance
• IP67 Rated & CNC Alloy Case – Built to take the punishment
• Max Battery Amps 700A

Next Gen Logic

• Industry-Leading 68 IO Support – Runs anything, from race bikes to full-featured builds
• Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
• Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
• Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability

Race-Ready, Rider Tuned

• 6 Fully Customizable Power Levels (Race + Street Modes)
• Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
• Load & Go Battery Profiles – Over 15 plug-and-play setups
• Preloaded Motor Tunes – 30+ motors supported out of the box
• One-Touch Updates – OTA firmware & compatibility expansion

Built for the Bikes You Ride

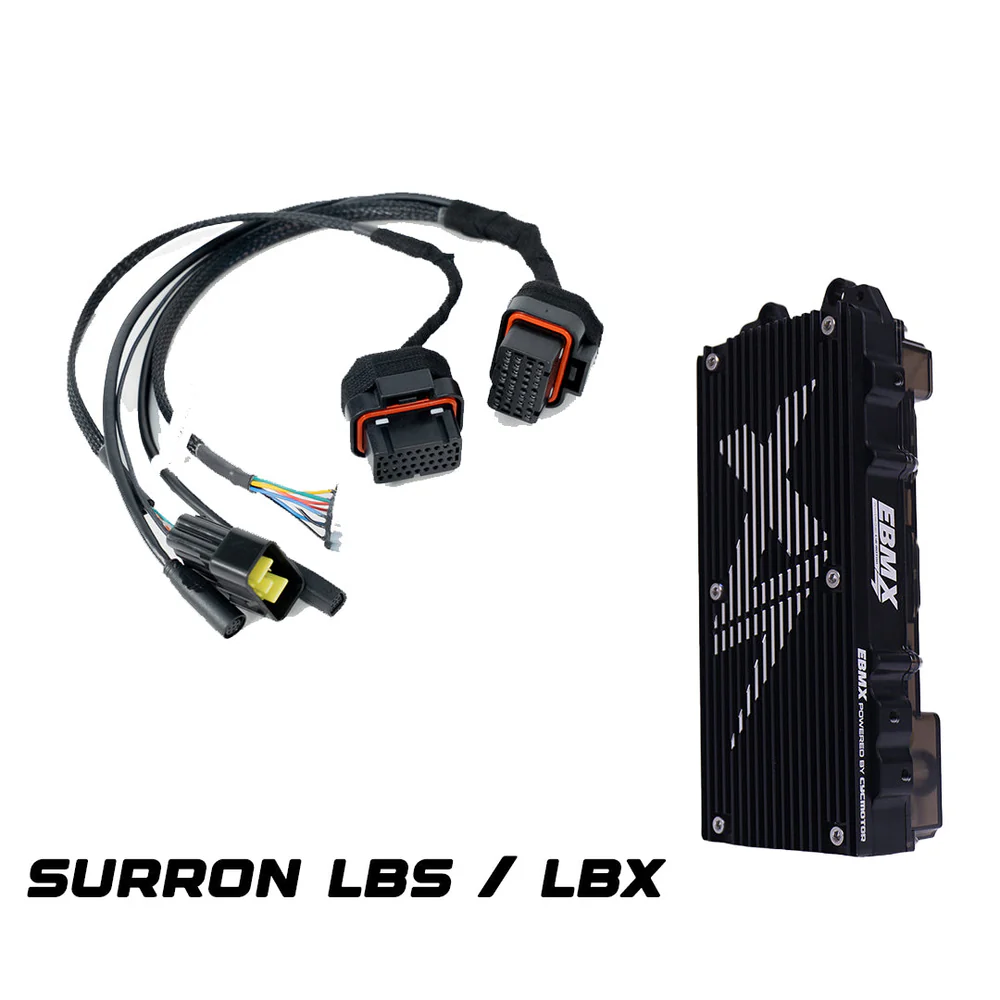

• SurRon Light Bee
• SurRon Ultra Bee – Works with your OEM Peripherals/Display!! Does not come with thumb regen lever or display (SW102/BC351)
• Talaria MX3 / MX4 / MX5
• Talaria XXX / XXX Pro

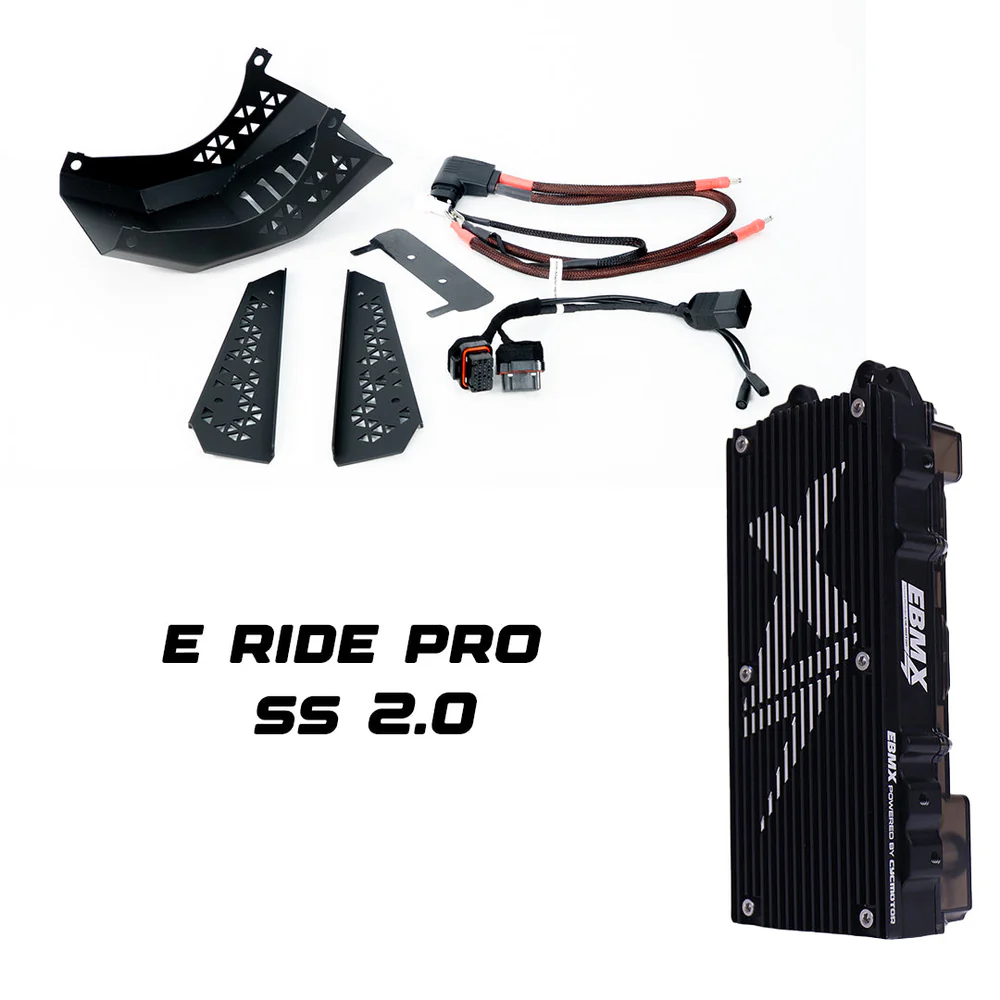

• E Ride Pro SS 2.0 (With V3 Battery Plug)
• E Ride Pro SS 3.0 (With Breaker)
• E Ride Pro SS 3.0 (Without Breaker)
• E Ride Pro SR
• ReRode R1
• QS138 Motors
