Developed specifically for the SurRon Ultra Bee

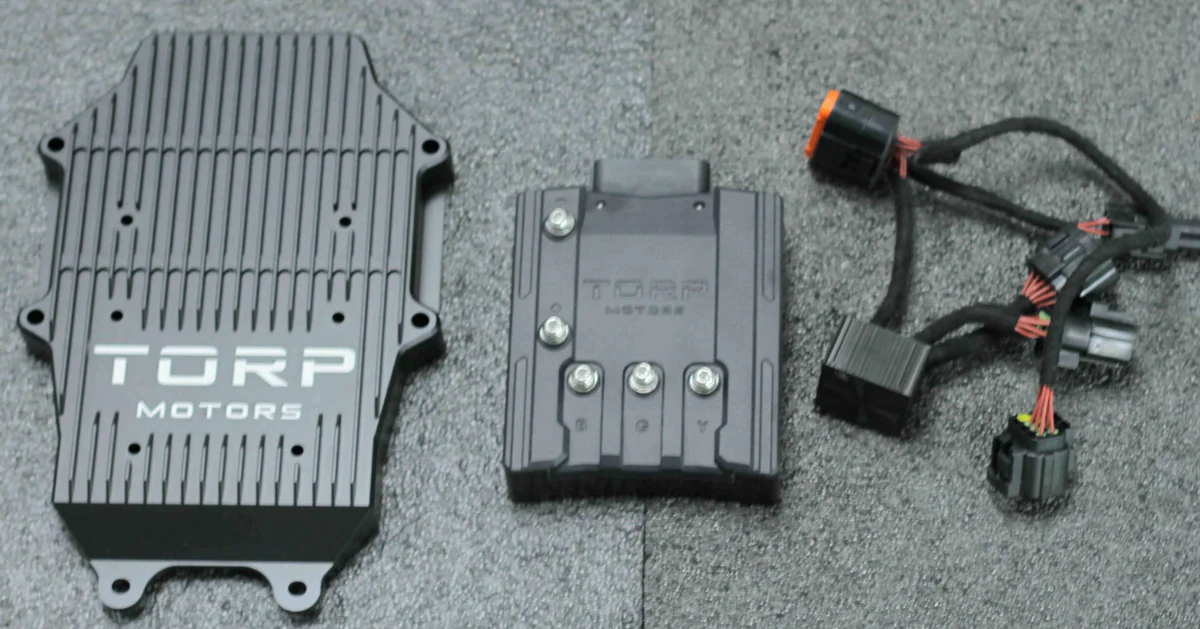

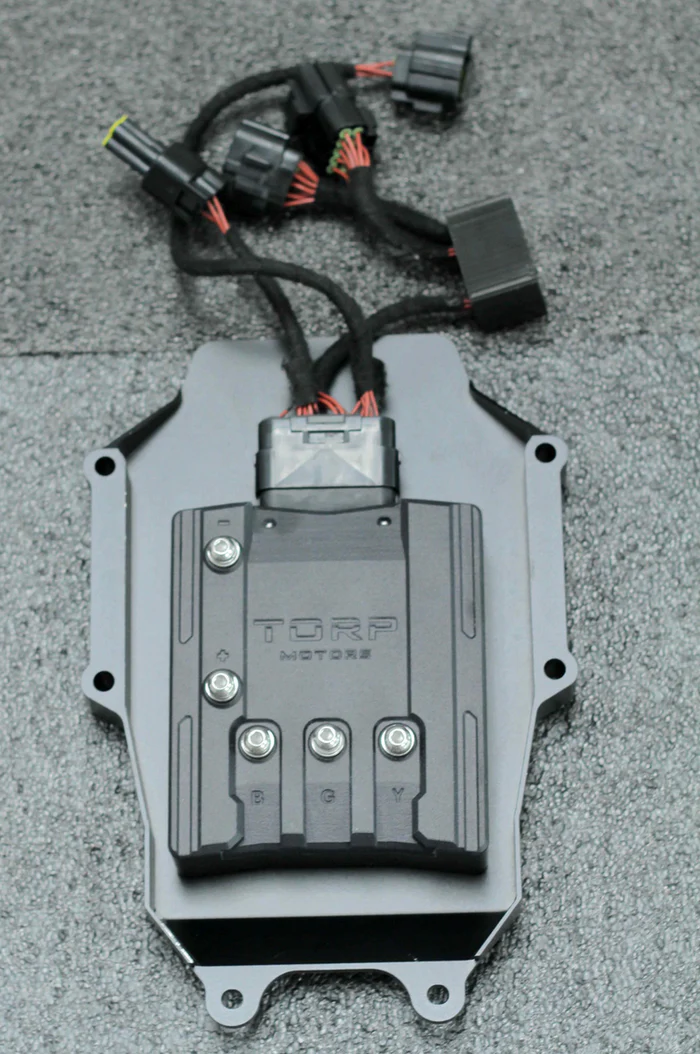

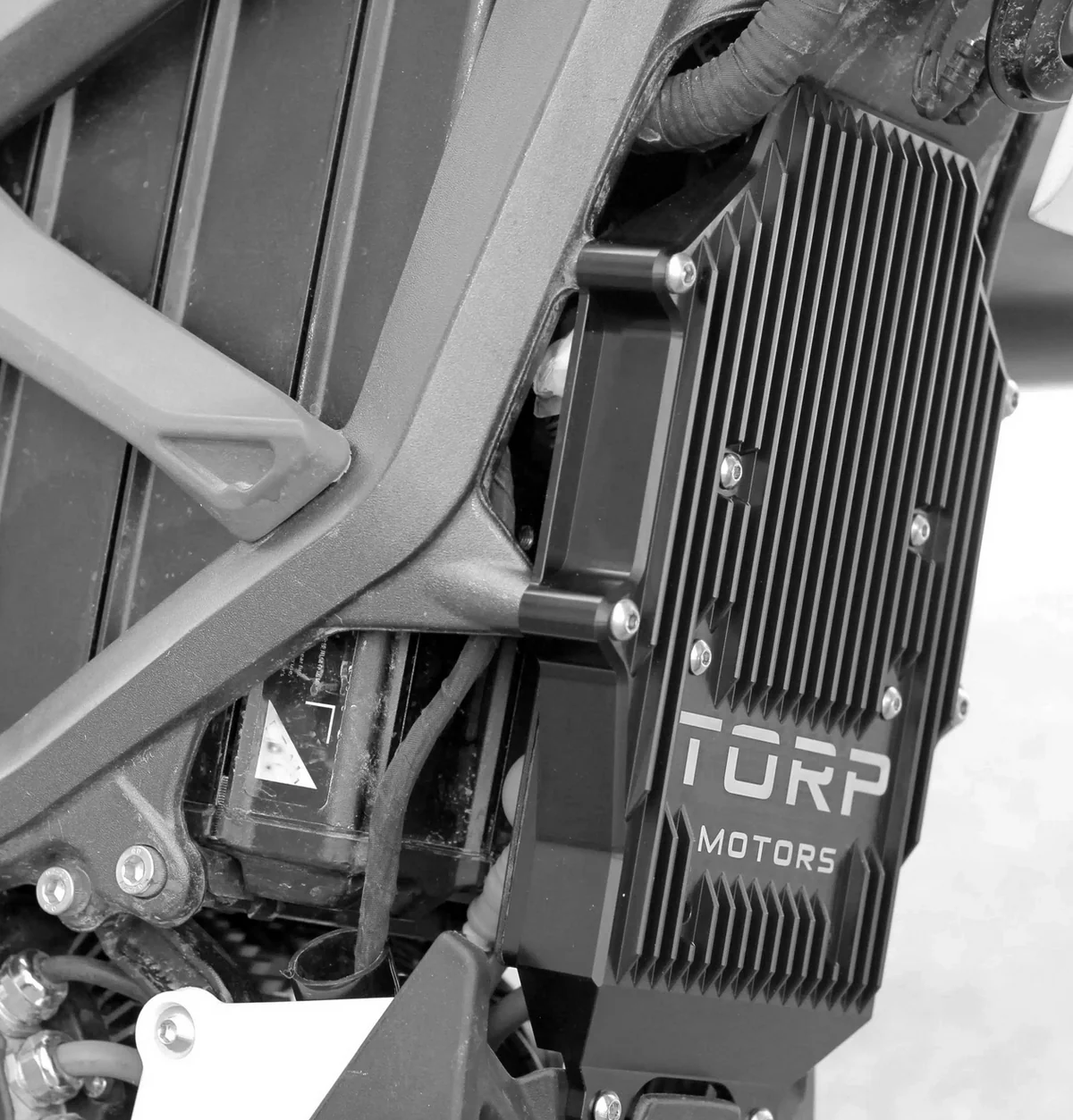

TC1000 controller has been developed to boost the performance of the Surron Ultra Bee electric motorcycles. Easy to install (fits like OEM) and configure in just a couple of clicks in the Torp app.
THE TC1000 & SURRON ULTRA BEE ARE A PERFECT MATCH.
Simply install the TC1000 on your OEM battery to achieve 19KW. If you choose to upgrade to our 72v 76ah battery (each can achieve up to ~50 miles of range), 30KW is possible. That’s right, the best of both worlds! You can easily switch between your OEM battery and the upgraded 72v battery at any time via the intuitive mobile app.
*Bypassing the battery is not recommended. Doing so can lead to potential risks and may compromise the safety and functionality of your bike.
With the TC1000 there are no trade-offs: Upgrade in power doesn’t have to mean a downgrade in stock features. The Torp TC1000 controller keeps all the OEM Surron Ultra Bee functions intact while boosting your bike’s performance!
THE LIST OF STOCK FEATURES THE TC1000 WILL PRESERVE
Sport/Eco/Daily mode (retains OEM functionality)
Kickstand and kill switch (retains OEM functionality)
Brake sensor for regeneration (retains OEM functionality)
Crash sensor (retains OEM functionality)
Reverse function (retains OEM functionality)
The ready button (retains OEM functionality)
All data displayed on the stock display (retains OEM functionality)
Stock battery communication for in-depth insights into your battery’s status and condition.
* Torp is in the EU, so import duties and taxes are required. We have already paid them, which is included in the price.
v1 SPECS
-Supported batteries: OEM battery and high-output/aftermarket 72V nominal (84V fully charged) 80.3V aftermarket battery.
-Max Power: 50KW
-Sensor (HALL Encoder) and sensorless control
-Max Battery Current: 800 A
-Max phase current: 1000 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: Easy calibration through mobile app
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 2.85lbs
-Features: Mobile App (IOS & Android), stock Surron display
-Protection class: IP67
-Regular firmware updates
Installation PDF here
v2 SPECS
-Supported batteries: from 60V up to 80V nominal 22S (92,4 V fully charged)
-Max Power: 58kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 700 A
-Max phase current: 1000 A*
Helpful Setup Links and Documentation
-Torp App Manual
-Installation video
-TC1000 Controller Manual
-Warranty Policy
-Join the Torp User Community FB group to get direct access to the Torp support team.
