BiK Dual Bore Rear Brake Kit

Are you looking to give you Sur-Ron Light Bee (or like-type bike) the ultimate in
stopping power? Then the BiK Dual-Bore Full Floating braking system is your solution!

Custom 240mm OD X 3.1mm thick, floating wave rotor. Unlike a one-piece rotor, a two-
piece rotor offers significant advantages. The aluminum carrier acts as a heat sink,
drawing heat away from the braking surface, giving you more consistent, predictable
performance. It also allows for thermal expansion and contraction, minimizing heat-
based warping that one piece designs are more prone to. Also, it looks pretty cool.
The Dual Bore caliper utilizes motorcycle industry-standard DOT 4 fluid to push two

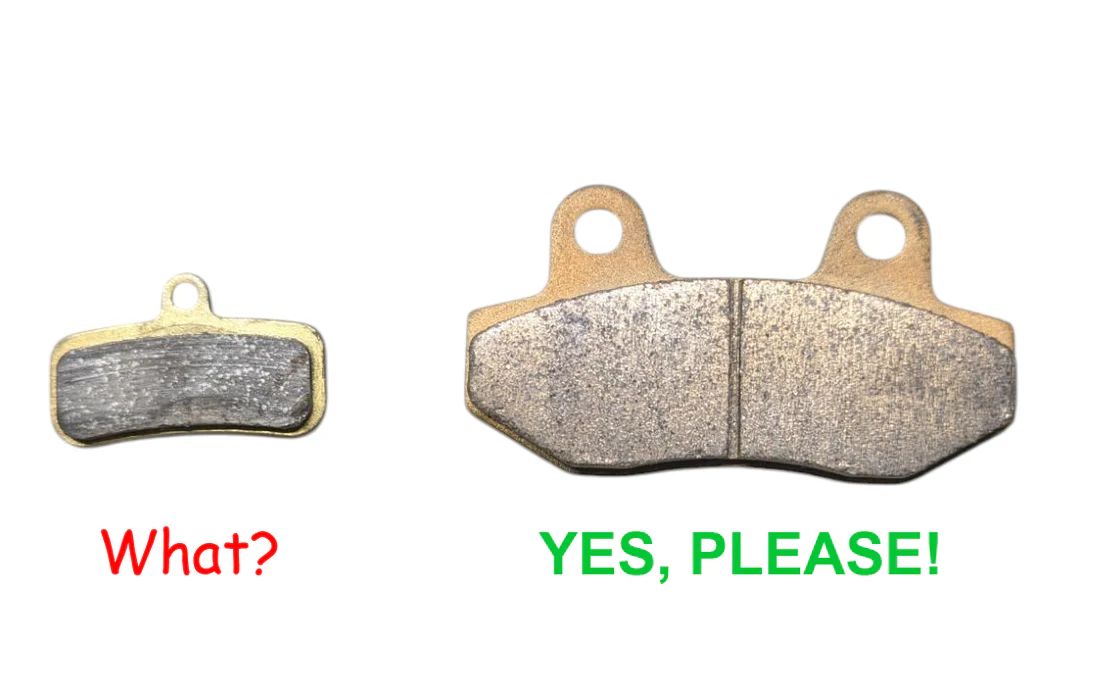

large pistons, that activate the equally large, sintered brake pads. Fade-free
performance? Yes, please!

The BiK master cylinder features a comfortable, ergonomic dogleg lever with rubber
dust cover. Adjustable piston allows the rider to set the bite point and ramp-up of the
lever to match their riding style.
The custom caliper bracket is beautifully milled from tough T6 6061 aluminum and
comes with the glide pins pre-installed.

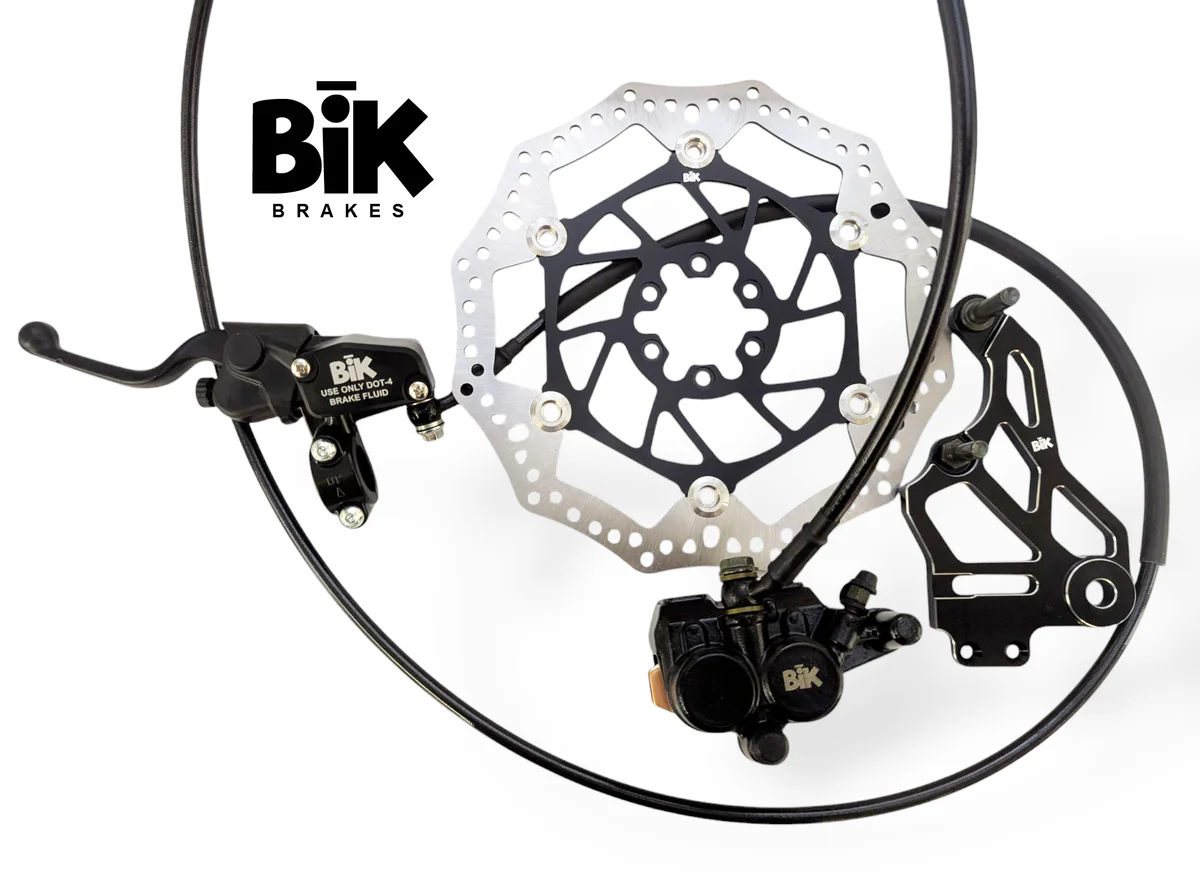

Each kit comes with:
-Pre-bled master cylinder/hose/caliper
-T6 6061 caliper bracket
-240mm X 3.1 floating wave rotor with your choice of Sur-Ron Light Bee or Talaria/Warp9 hub bolt pattern
-Two rubber-covered, stainless steel P clamps

Fitment:

Surron LBX Brake Rotor Pattern:

• SurRon Light Bee S
• SurRon Light Bee X
• E Ride Pro S
• E Ride Pro SS 2.0
• Ventus One

Talaria / Warp 9 Brake Rotor Pattern:

• Talaria MX3
• Talaria Sting MX4
• Talaria xXx
• Warp 9 V3 hubs
