Formula EB9 E-Moto Brakes

1. Formula EB9 E-Moto Brake System

SOLD AS A FULL SET (Front & Rear)

Built for the next generation of high-power, hyper-light e-motos, the Formula EB9 delivers unmatched braking performance, control, and consistency when it matters most.

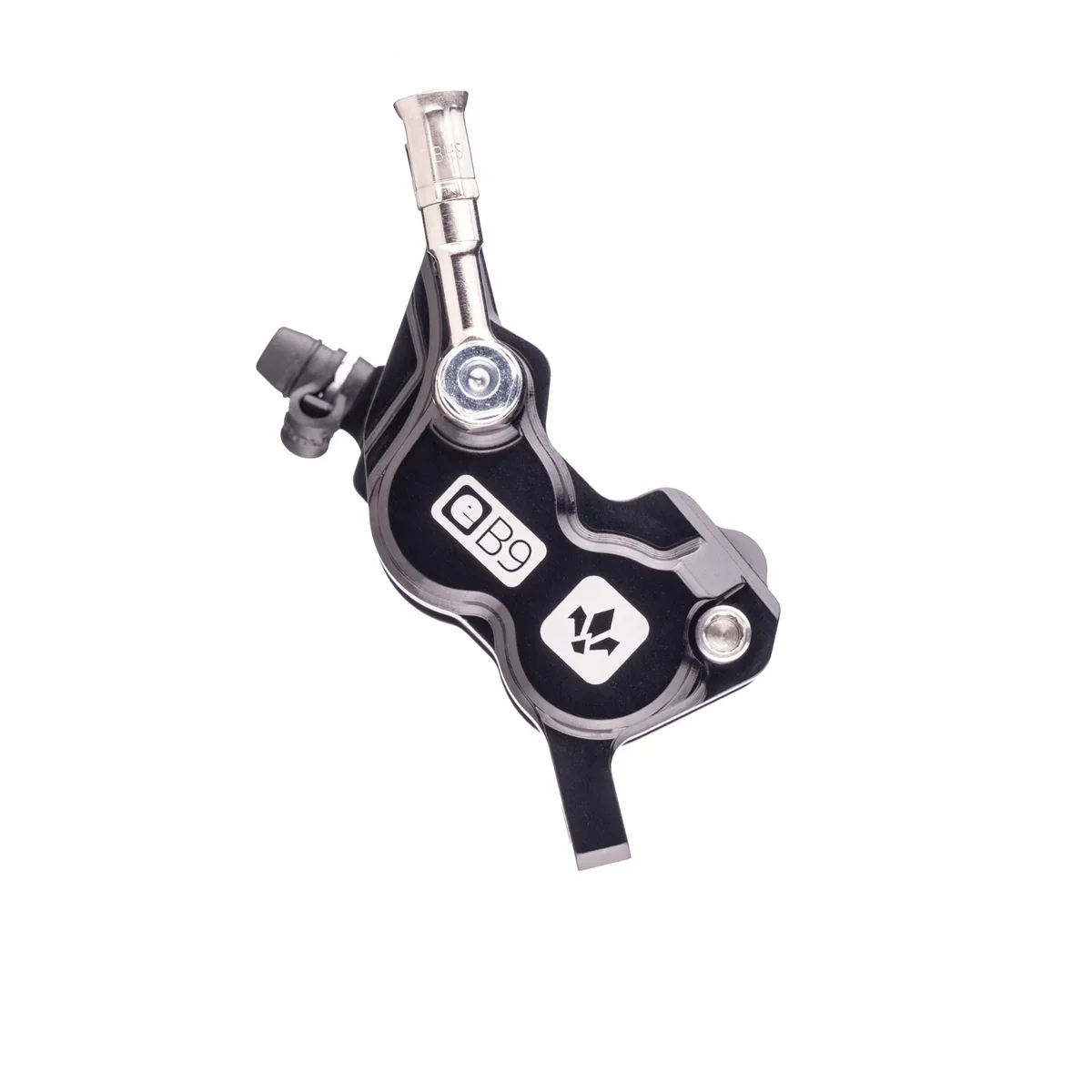

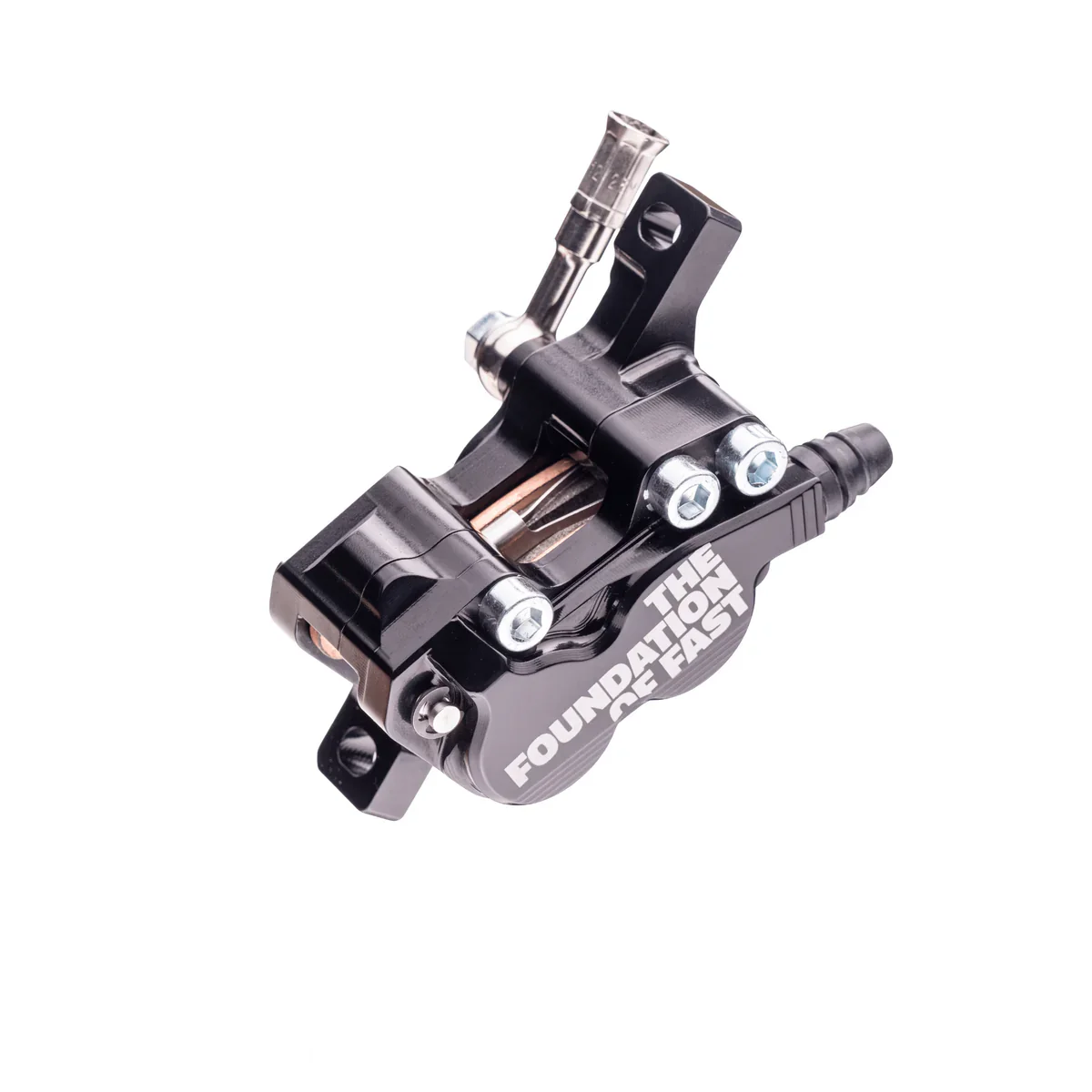

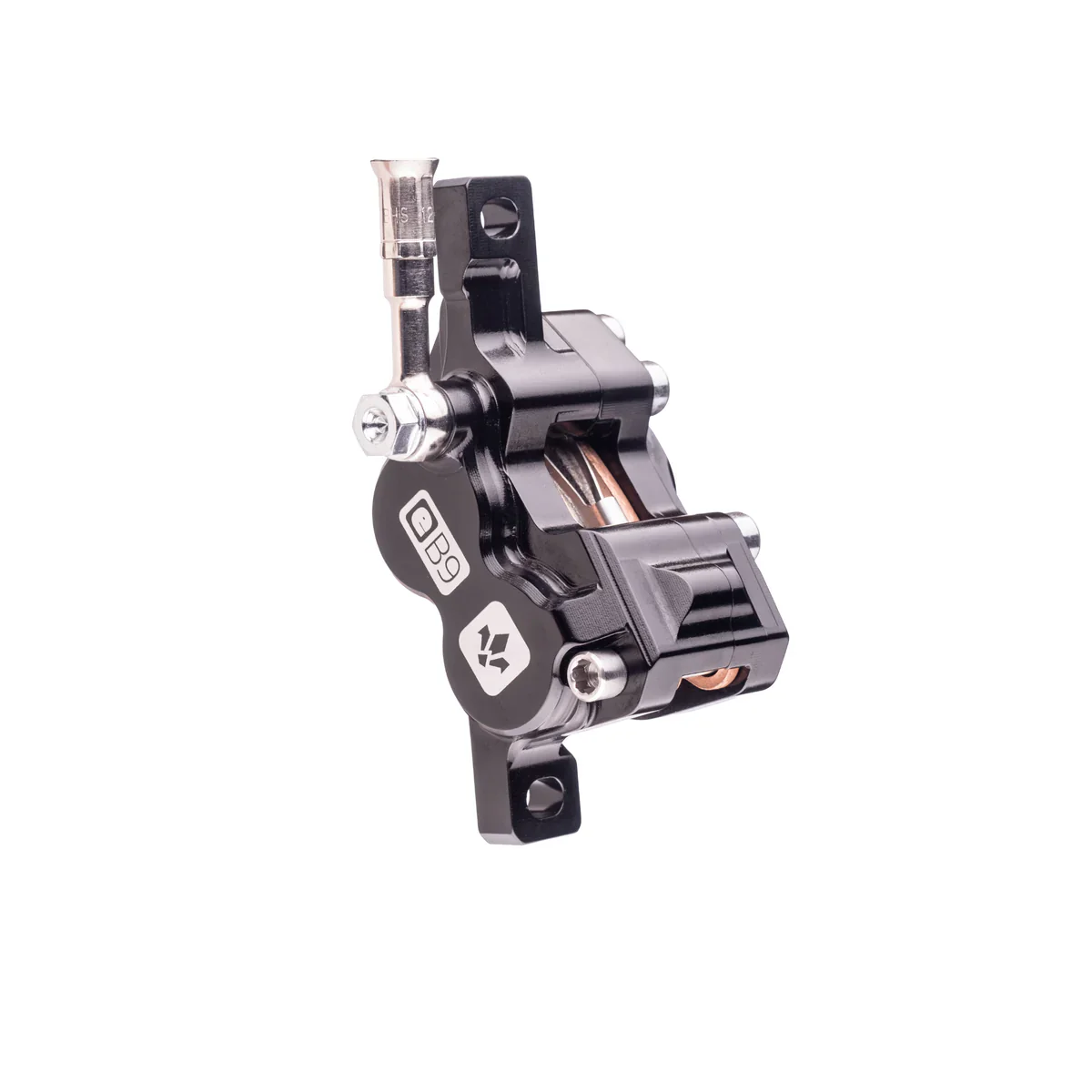

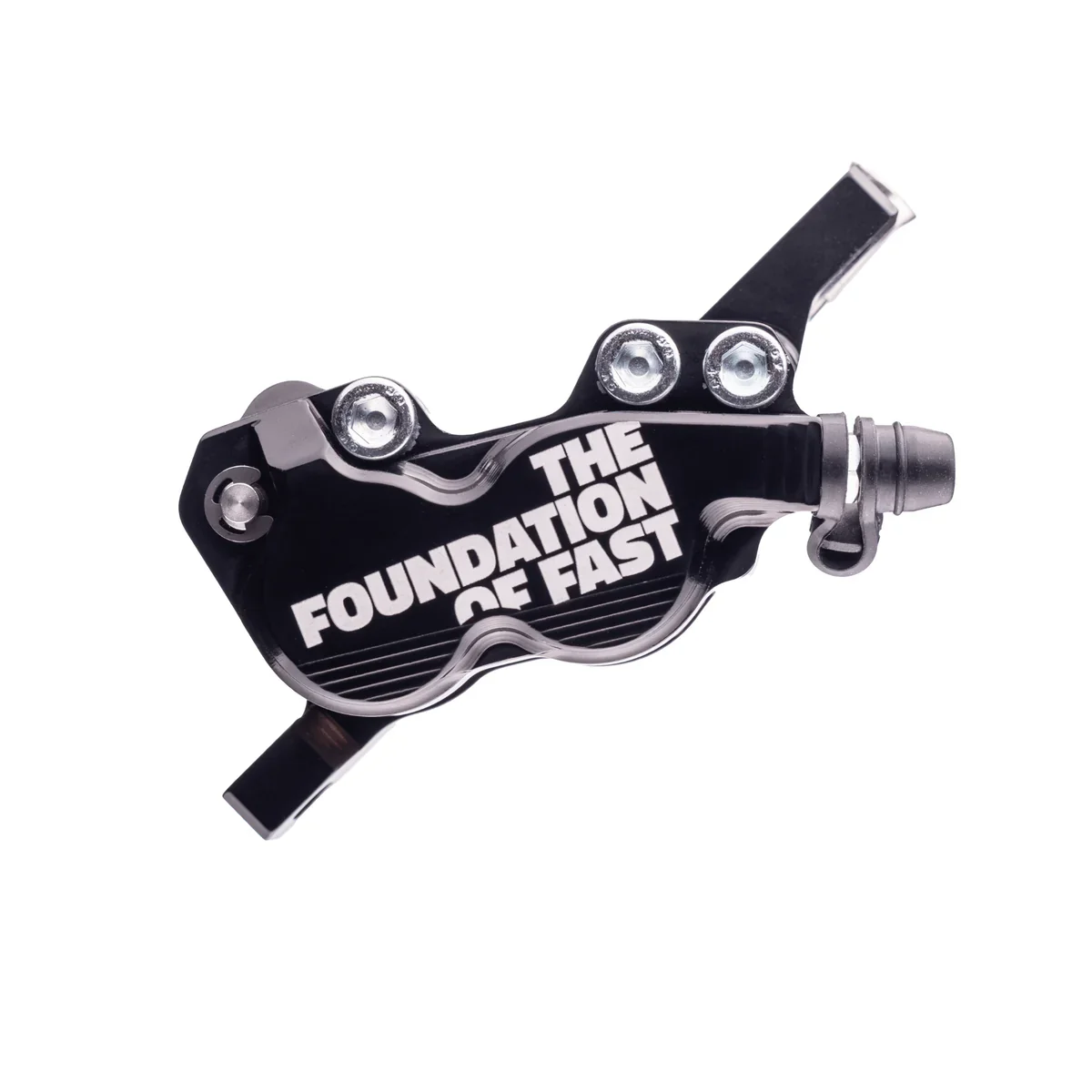

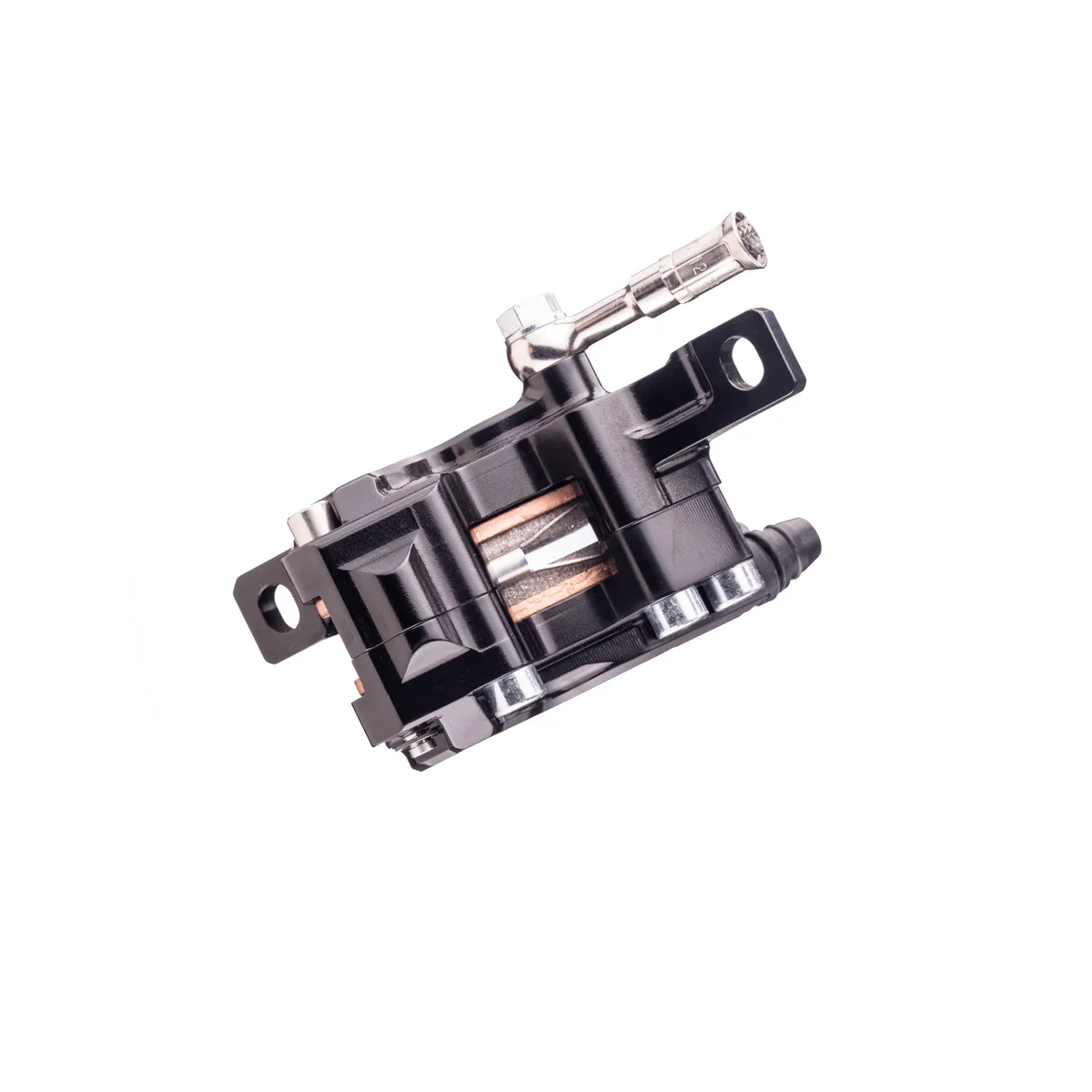

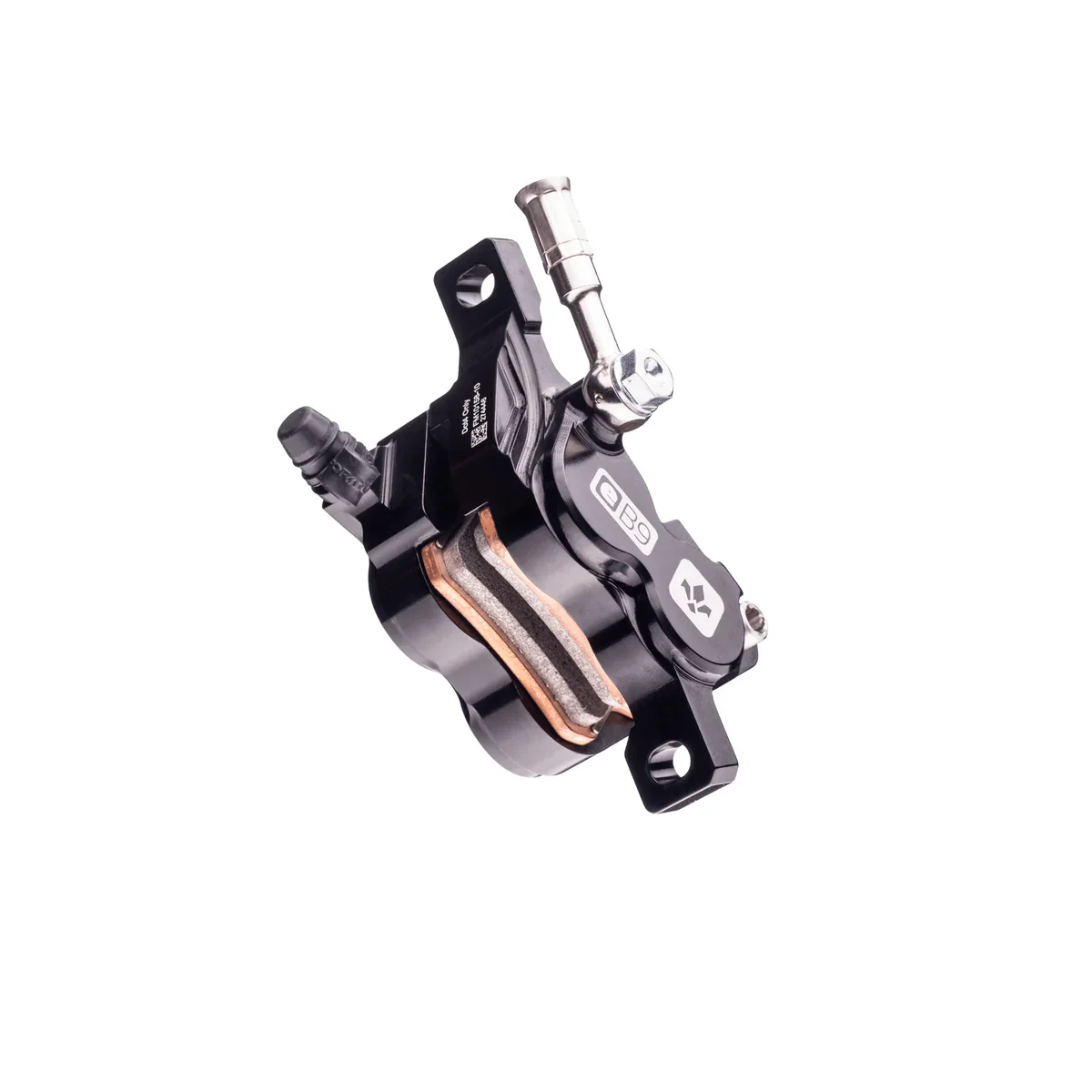

Engineered and manufactured in Italy, the EB9 features a precision CNC-machined caliper constructed from aeronautic-grade 7075 aluminum, delivering an exceptional stiffness-to-weight ratio and ultra-consistent hydraulic performance. The multi-piston design (4x22mm front / 2x22mm rear) provides powerful, controlled braking with increased pad surface area for improved bite and heat management.

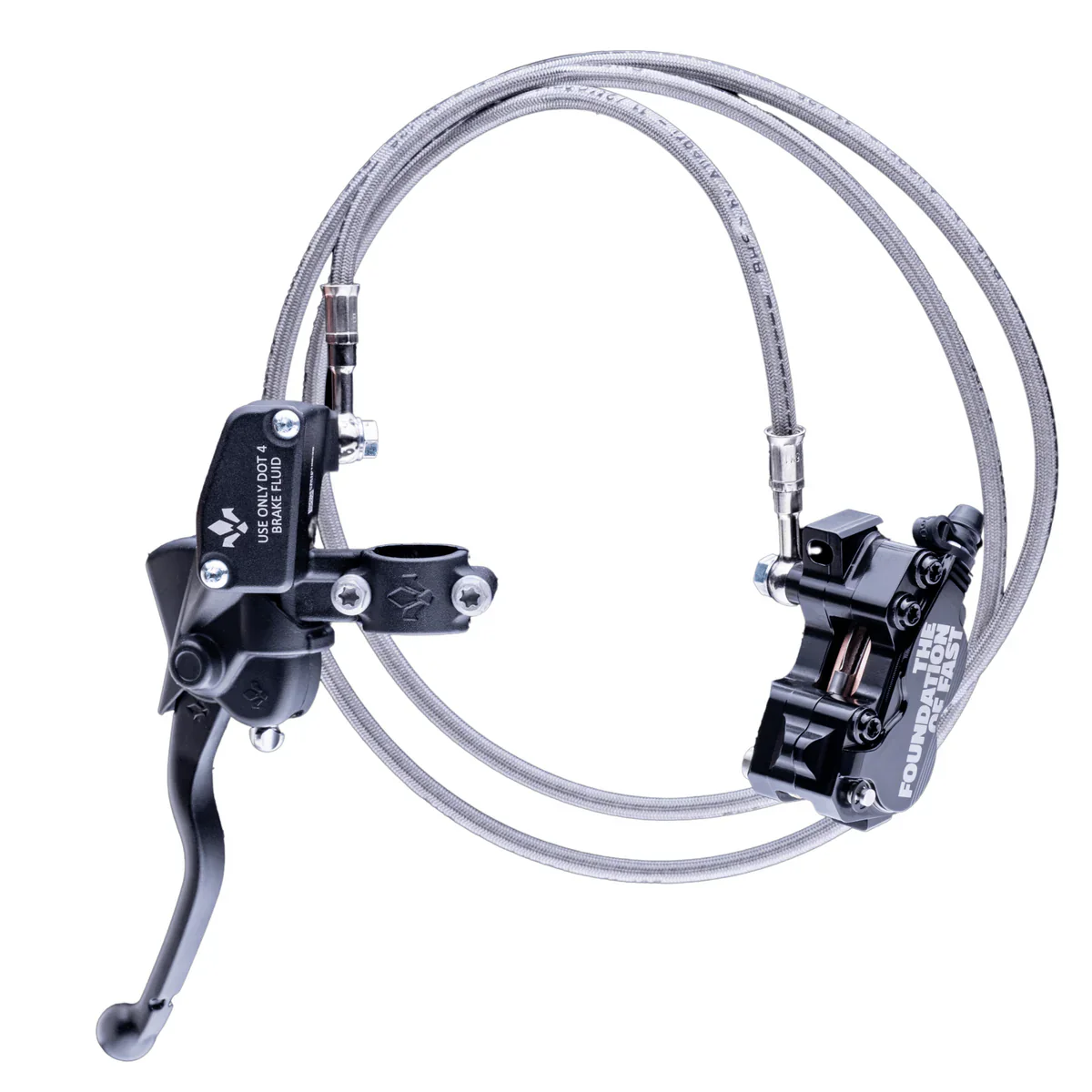

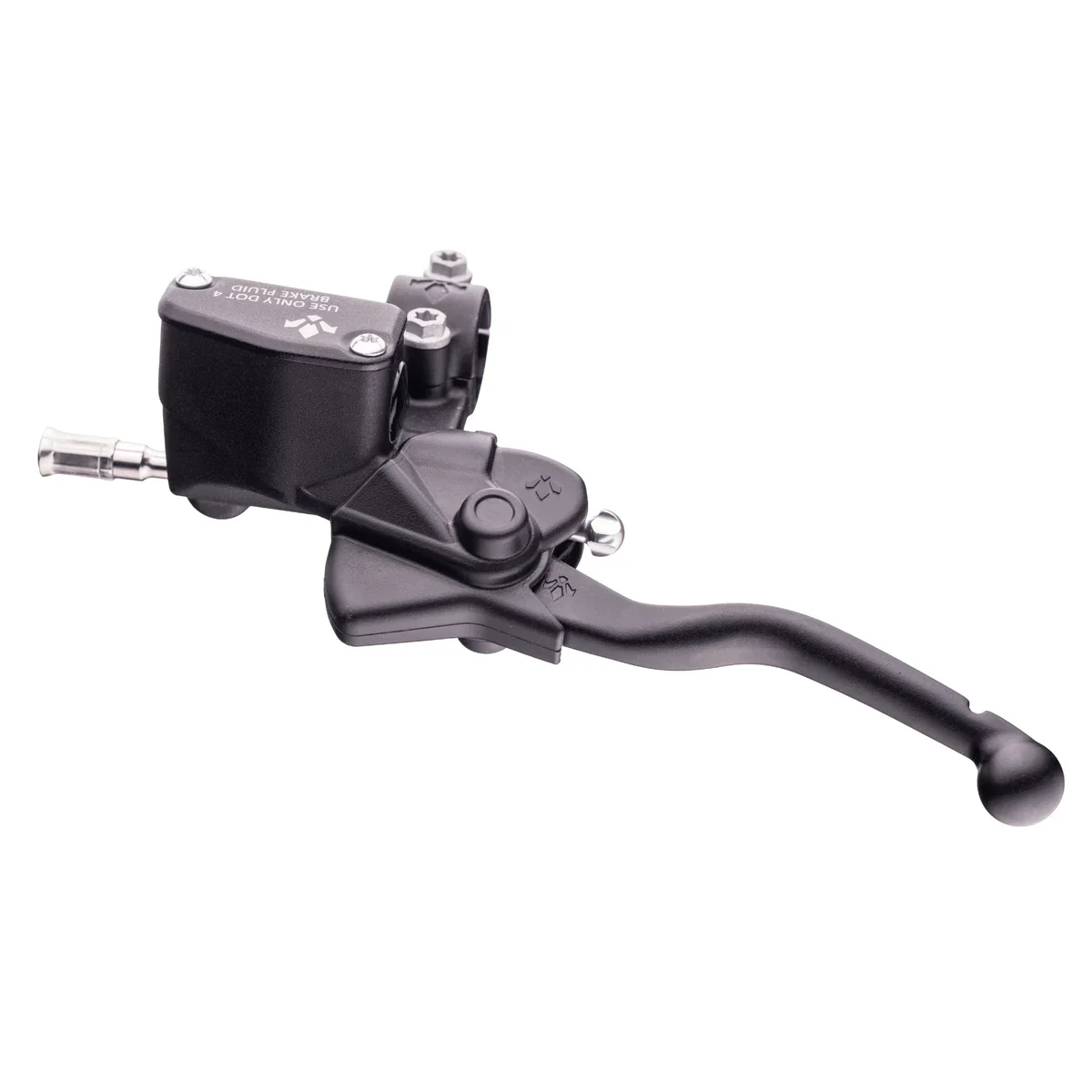

Paired with forged aluminum master cylinders and steel-braided lines, the system offers refined lever feel, precise modulation, and confidence under aggressive riding conditions.

Designed specifically for modern electric platforms, the EB9 is a true plug-and-play upgrade—eliminating the compromises of adapting traditional moto brake systems.

---

Included / Purchase Format

The Formula EB9 is sold as a complete front and rear brake set only.
This ensures balanced braking performance, proper system compatibility, and optimal rider safety. Individual front or rear kits are not sold separately.

---

Key Features

• CNC-machined 7075 aluminum caliper (Made in Italy)
• High stiffness-to-weight ratio for maximum control
• Multi-piston design for increased braking power
• Consistent performance with effective heat management
• Refined lever feel with precise modulation
• Sintered pads for durability in demanding conditions
• Steel-braided lines with PTFE inner liner
• Plug-and-play compatibility for leading e-moto platforms

---

Fitment Options & SKUs (EB9 Series – Bike Specific Mount Sizes)

Each EB9 option is engineered for a specific brake mount spacing (mm).
You must select the option that matches your bike’s caliper mount — these are NOT universal across models.

---

90mm Mount (EB9)

Compatible Bikes:

• Arctic Leopard XE Pro S
• Arctic Leopard XE Enduro

SKUs:

• Front Kit (115cm) — FM6115-EMT
• Rear Kit (160cm) — FM6116-EMT

---

95.5mm Mount (EB9)

Compatible Bikes:

• Talaria MX5
• Altis Sigma

SKUs:

• Front Kit (115cm) — FM6111-EMT
• Rear Kit (160cm) — FM6112-EMT

---

99.5mm Mount (EB9)

Compatible Bikes:

• E Ride Pro SR
• E Ride Pro 3.0

SKUs:

• Front Kit (115cm) — FM6113-EMT
• Rear Kit (160cm) — FM6114-EMT

---

⚠️ 74.2mm Fitment Notice (EB7 System Only)

The 74.2mm mount size is NOT part of the EB9 system.

If your bike uses a 74.2mm brake mount (including Surron Light Bee, Talaria MX3/MX4, Ventus V1/V1+, Rerode R1/R1+), you will need the Formula EB7 brake system:

• Front Kit — FM6107-EMT
• Rear Kit — FM6108-EMT

---

This is braking built from the ground up for electric performance — not adapted, not compromised.
