Warp9 – FastAce Drop Crown Triple Clamp

Elevate Your FastAce Fork Setup with Warp 9’s FastAce Drop Crown Triple Clamp

Maximize your FastAce forks with Warp 9’s FastAce Drop Crown Triple Clamp. Designed to improve tire clearance, steering geometry and offer more adjustability and increased strength over the stock clamps.

Key Features:

• Built for Strength: Crafted from 7075-T6 billet aluminum, these clamps are renowned for their exceptional strength-to-weight ratio. This ensures unrivaled durability and rigidity, capable of handling the toughest rides.
• Increased Tire Clearance: With a 20mm wider design, the FastAce Triple Clamps accommodate 90 width tires and provide ample clearance for upper tubes during compression. This wider stance is also compatible with supermoto wheels and other wider tire setups, adding versatility to your bike.
• Drop Crown Design: The innovative drop crown design allows you to lower the fork tubes beyond the stock position, correcting steering geometry and restoring your bike’s head angles to stock specifications. This design removes the need for a steer lock system, integrating smoothly into your bike’s setup.
• Adjustable Bar Mounts: Featuring multiple bar mount hole locations, these clamps offer up to 10mm of forward or backward adjustment, allowing you to customize the positioning of your handlebars for the perfect riding position.
• Threaded Top Nut: The steering tube incorporates a motorcycle-style threaded top nut, this design ensures your headset bearings do not come loose.. This robust design eliminates the need for a steer lock system.

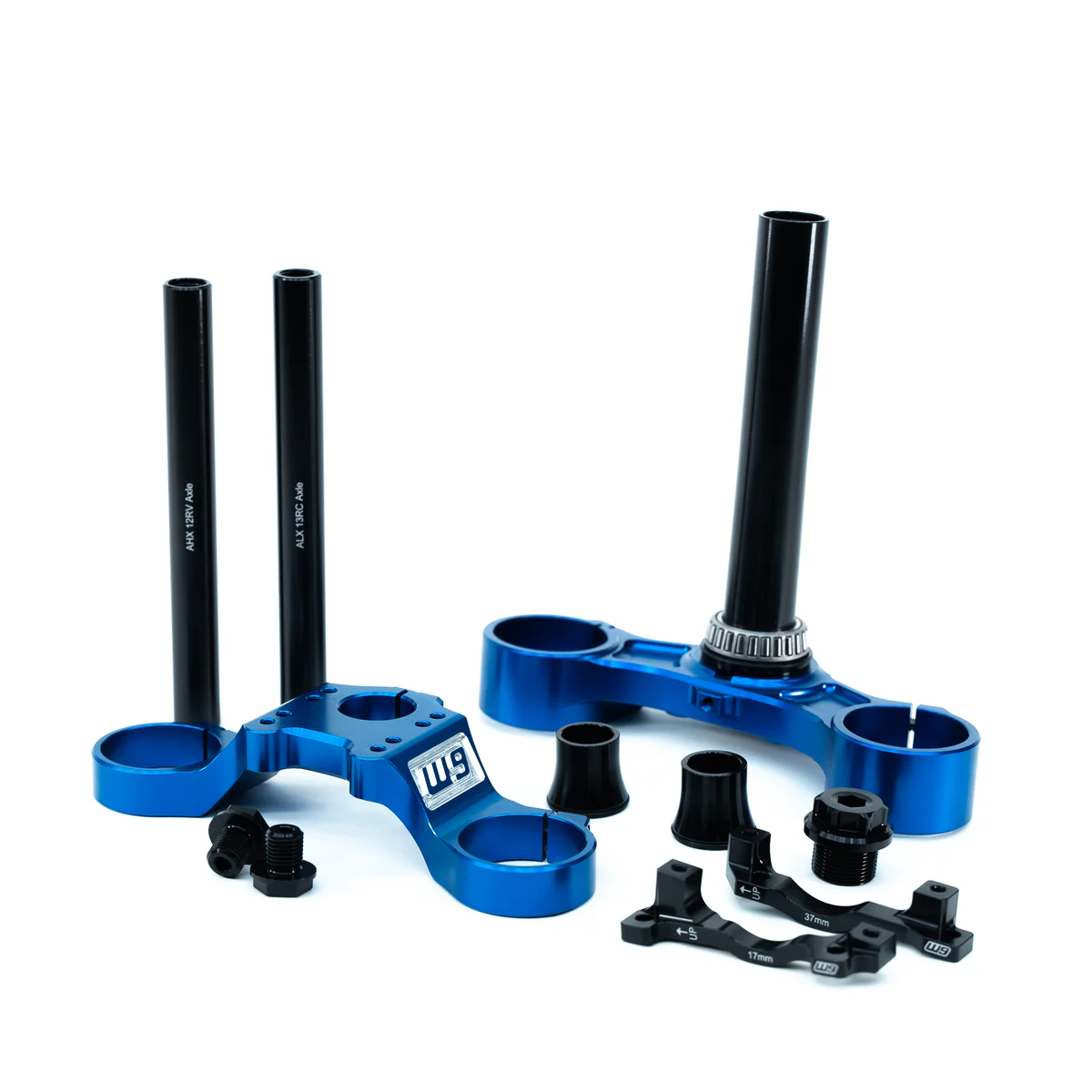

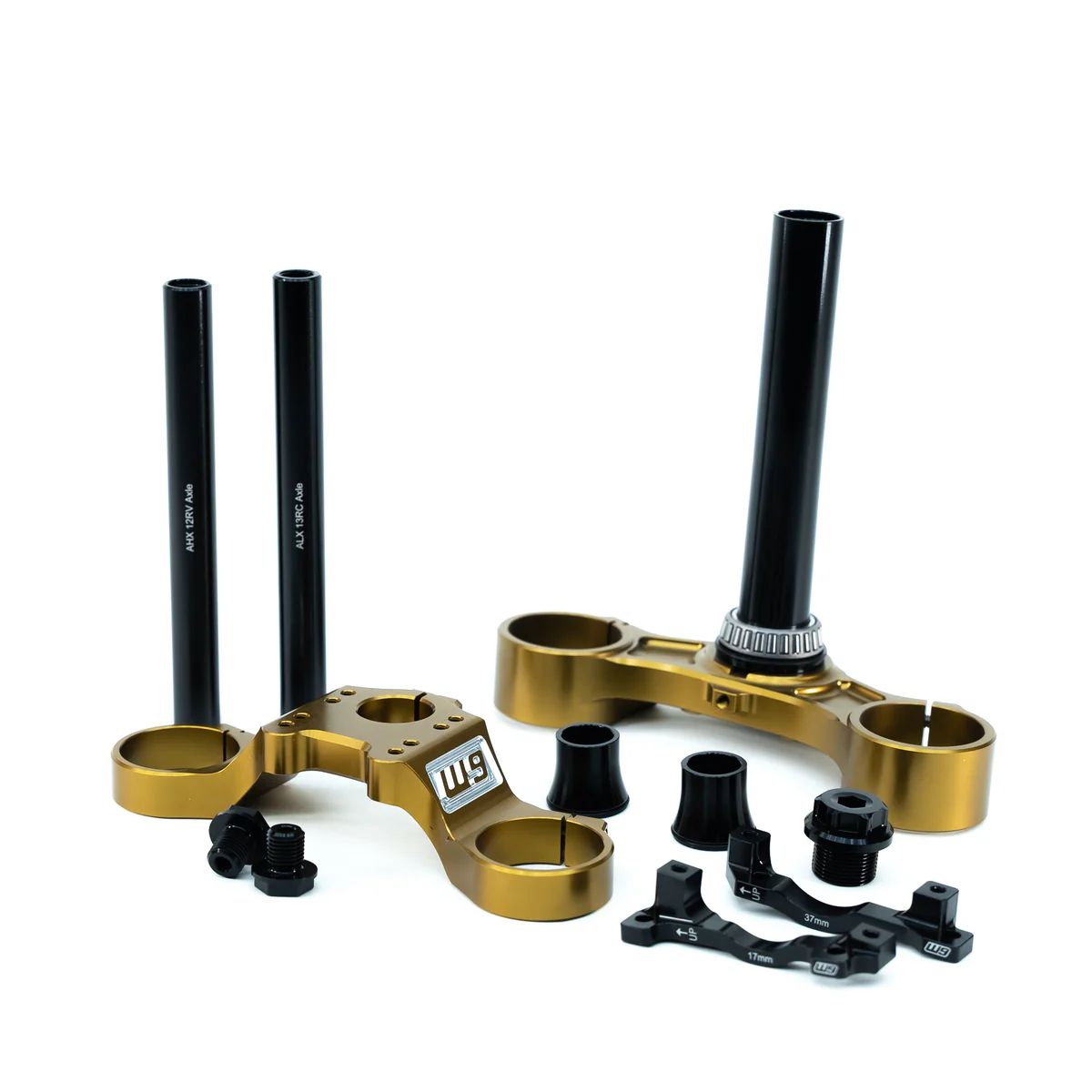

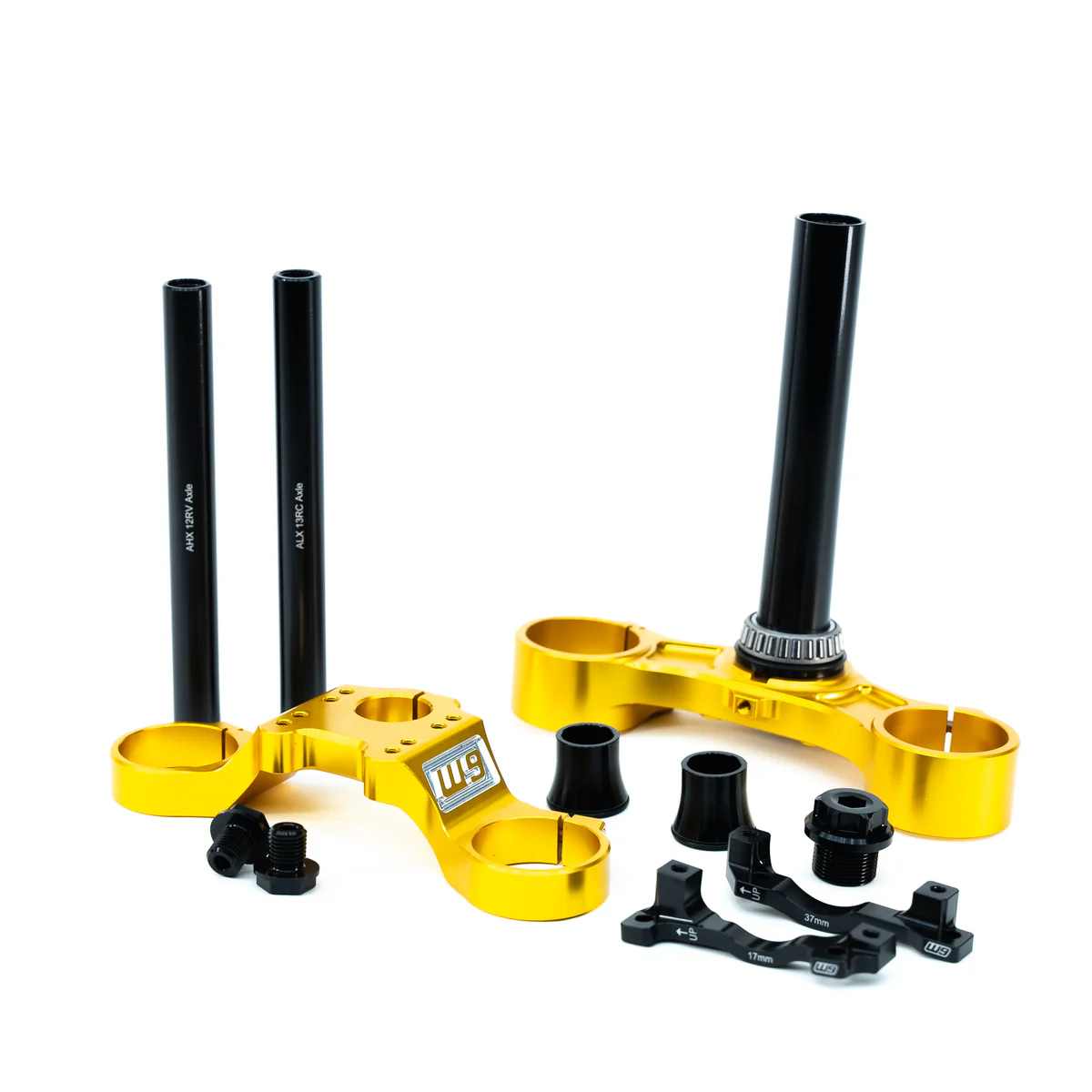

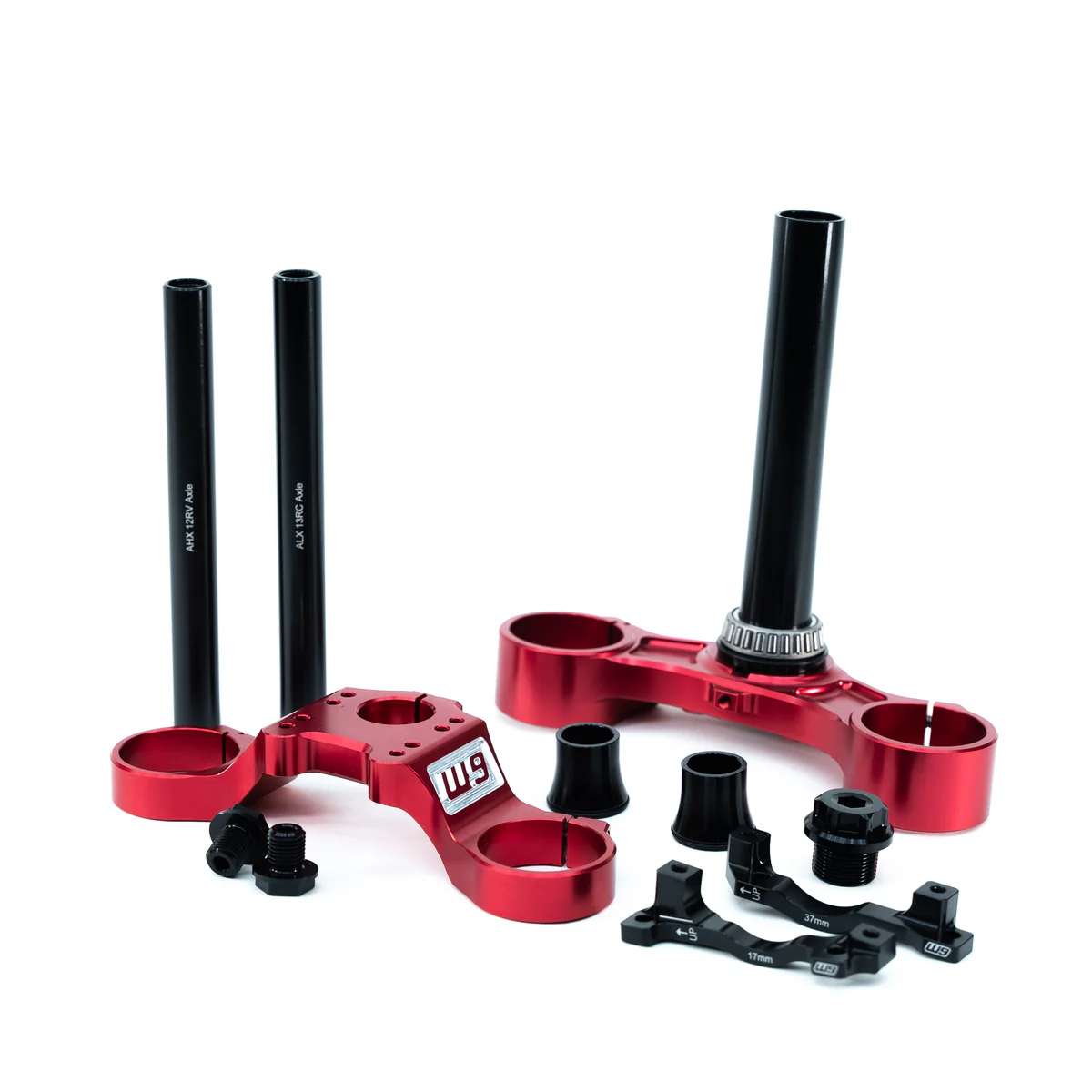

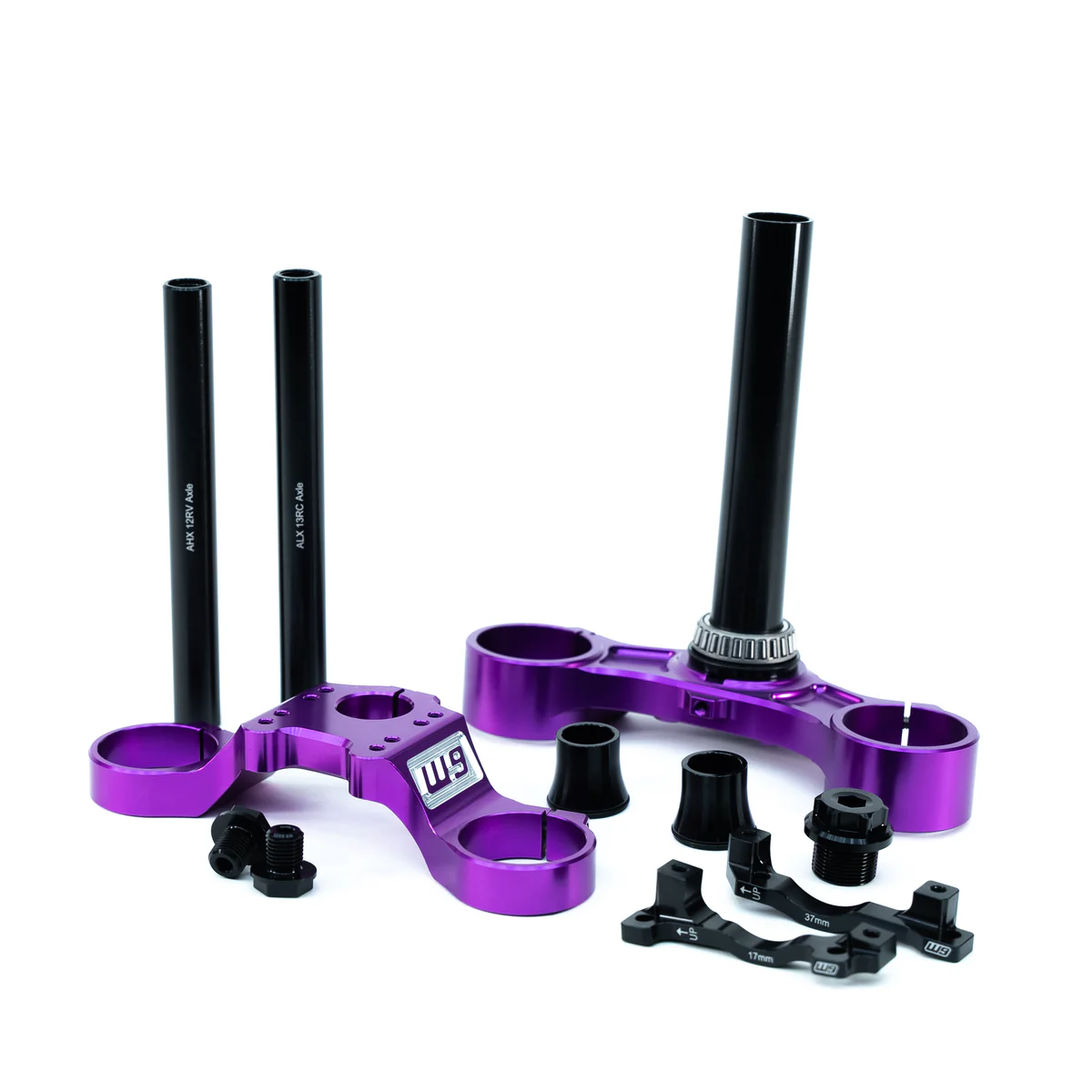

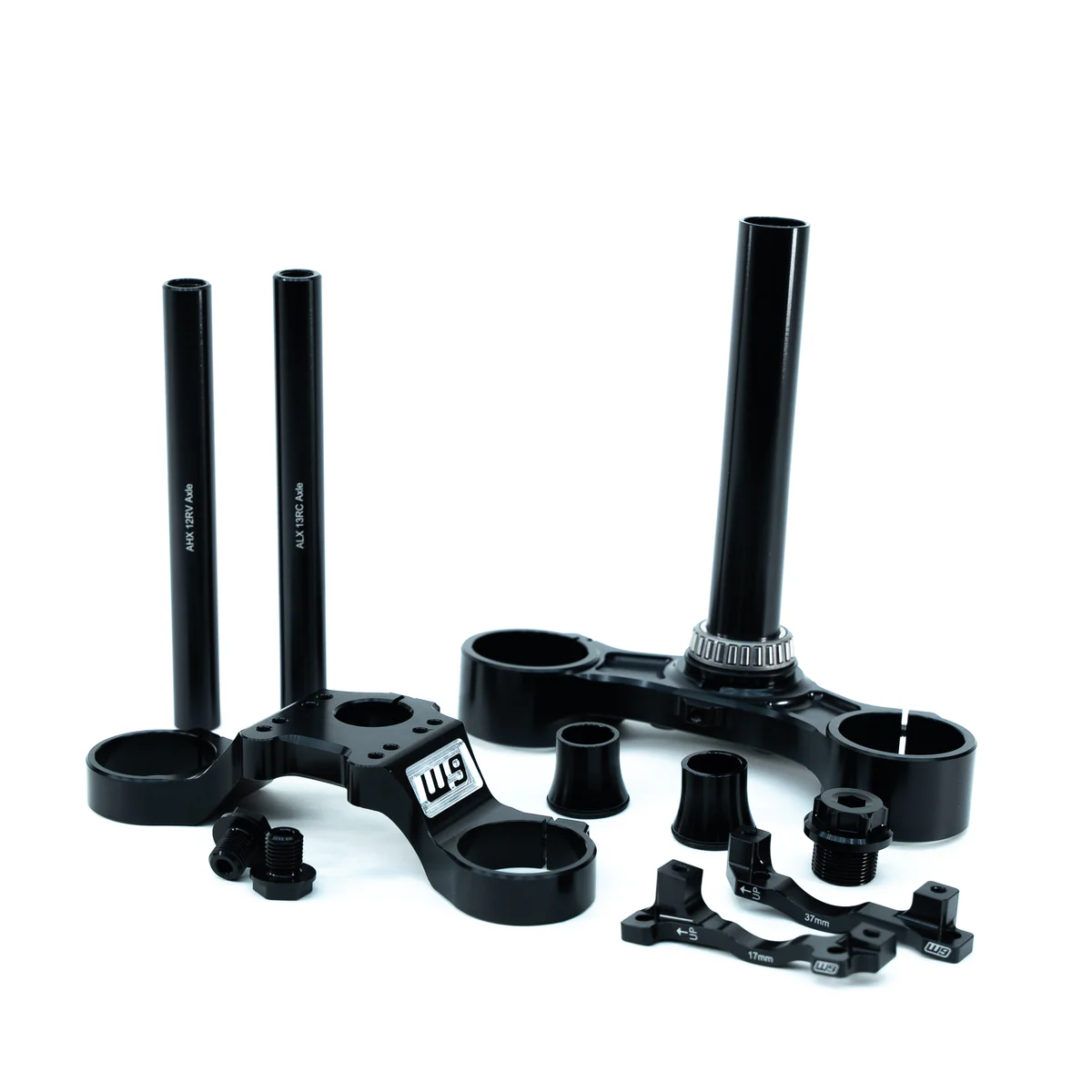

• Multiple Colors: Available in a range of vibrant colors including Black, Red, Blue, Magnesium, Gold, and Purple.
• Brake Brackets Included: Comes with offset brake caliper brackets compatible with 220mm and 240mm rotor sizes. A 250mm bracket will be available as an optional accessory in Fall 2024. Will NOT work with 203mm rotors.
• Compatibility: Specifically designed for the Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee, and Eride Pro. Note:     Compatible with Fast Ace Fork Models AHX12RV & ALX13RC.    Not compatible with Volar or Rippin Moto brake systems.

Features

• 1″ Drop
• 20MM Wider than OEM
• 220/240 Rotor Adapters
• Moto Style Top Nut
• Stiffer Chassis
• Multiple Color Options
• 2 Direct Mount Stem Positions

Fitment

• FastAce ALX13RC v1 or v2 installed on E Ride Pro SS, Surron, Falcon, Ventus, Talaria or other bikes compatible with the FastAce fork
• FastAce AHX12RV
• Talaria MX3 with FastAce ALX13RC (this is rare)
• DOES NOT FIT Talaria MX4 Factory Fork
• DOES NOT FIT KKE, DNM, EXT, Fox, or any other forks.
• DOES NOT FIT MX5 Factory Fork
• 203mm Rotors will NOT work (220mm/240mm rotors only)
• DOES NOT WORK with Volar sport brakes

Note: If running a 21″ front wheel with a FastAce fork we highly recommend a Dunlop MX33 or K990 sized 70/100-21 tire.  Not only are these the lightest 21″ tires but they will fit and clear much better than an 80/100-21 tire.

**!!This will NOT work with Woodys Wheel Works Hubs!!**
