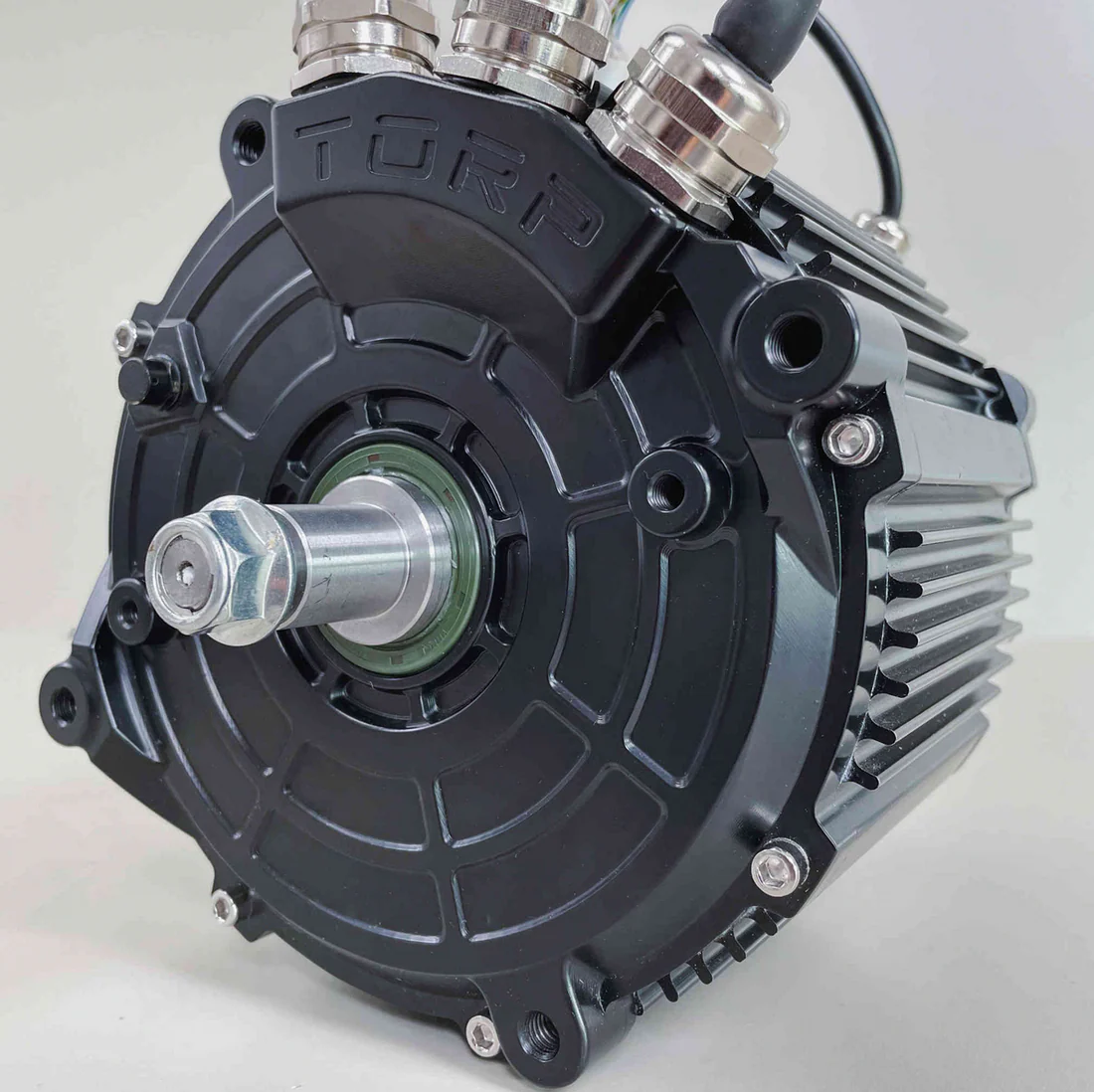

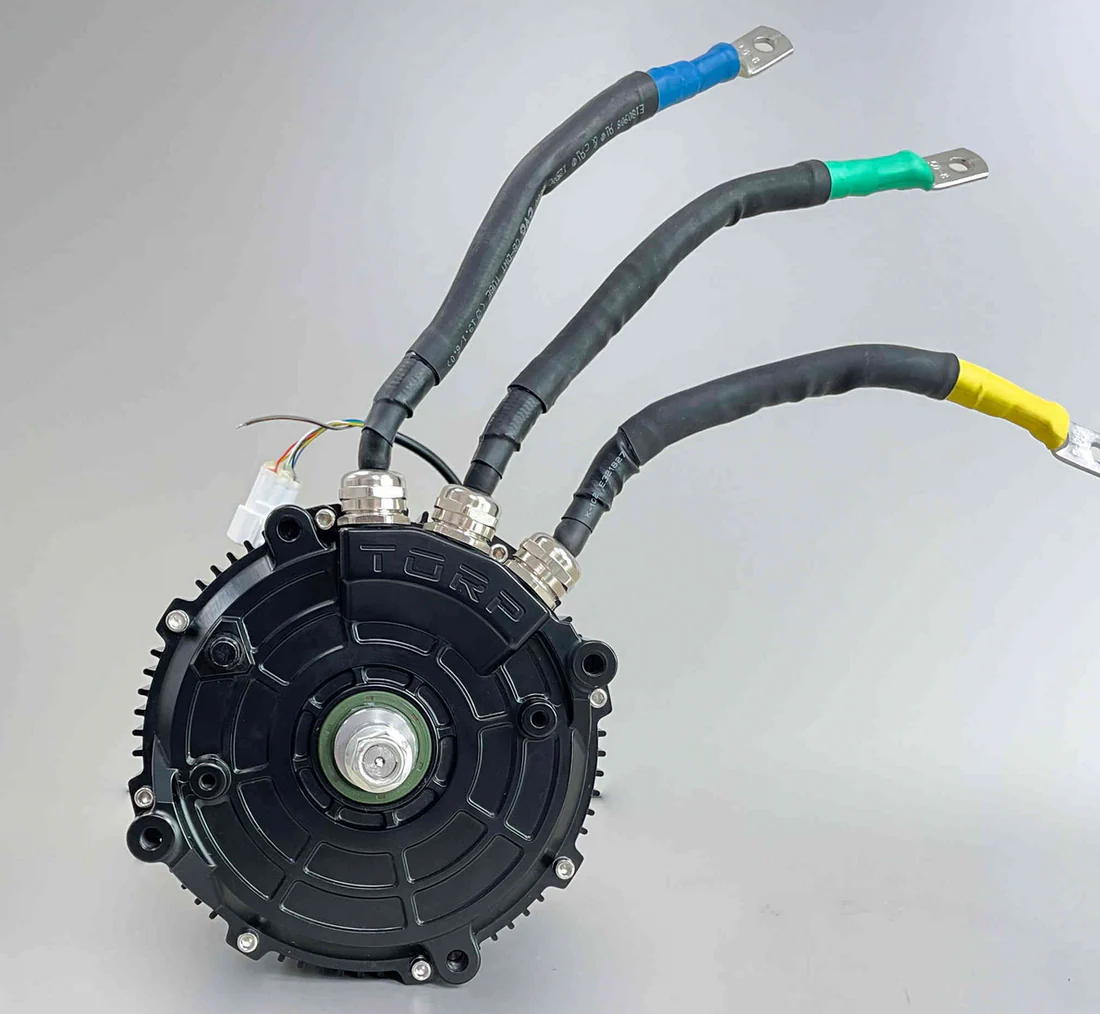

Torp TM50 and TM50 PRO Motor for Surron Ultra Bee

Name: Torp TM50 and TM50 PRO Motor for Surron Ultra Bee
Brand: Torp
SKU: 17122
Availability: InStock

$1,500.00

Version

Clear

SKU: N/A Category: Motors Brand: Torp

(TORP is officially discontinuing the TM50 motor and shifting focus to the next generation lineup: the TM50 Pro and the all-new TM50 Speed.) Torp TM50 motor has been meticulously designed by expert engineers with top-quality components for exceptional speed and heat efficiency on even the most challenging terrain, with up to 58kW of power output (TM50 Pro).

Featuring low resistance, precise control, and smooth operating, the encoder-based Torp TM50 motor is the leading aftermarket power upgrade for Surron Ultra Bee. Choose from the TM50 or TM50 Pro versions for the ultimate Surron motor upgrade.

Compatible with the Torp TC1000 controller

Torp TM50 Motor Features

Most powerful Surron Ultra Bee motor with the lowest resistance on the market
DYNO Test: 58kW Peak Power | 1200A Phase Current | 102Nm Max Torque
Improved motor power and performance without the risk of overheating
Built with thick motor windings for low resistance
Encoder position sensor utilized for precise control and seamless operation at both high and low speeds
Constructed from top-quality materials for durability and a longer life span
Designed and developed in the EU for Sur-Ron Ultra Bee with adaptable mounting options for other electric motorbikes

Torp TM50 Motor Specs

	Torp TM50 Motor	Torp TM50 Pro Motor
Peak Power:	52 kW	58 kW
Continuous Power:	22 kW	24 kW
Max Phase Current:	1100 A	1200 A
Max Torque:	98.5 Nm	102 Nm
Torque @ 500a	52.5 Nm	49 Nm
KV Rating:	85	88
Motor Resistance:	2.3 mΩ	2 mΩ (smoother)
Phase Cross-Section:	36 mm²	42 mm²
Magnet Length:	75 mm	80 mm
Weight:	30.2 lbs (13.7 kg)	31.3 lbs (14.2 kg)
Motor Size:	6.7″×7.8″ (170×198 mm)	6.7″×7.8″ (170×198 mm)
