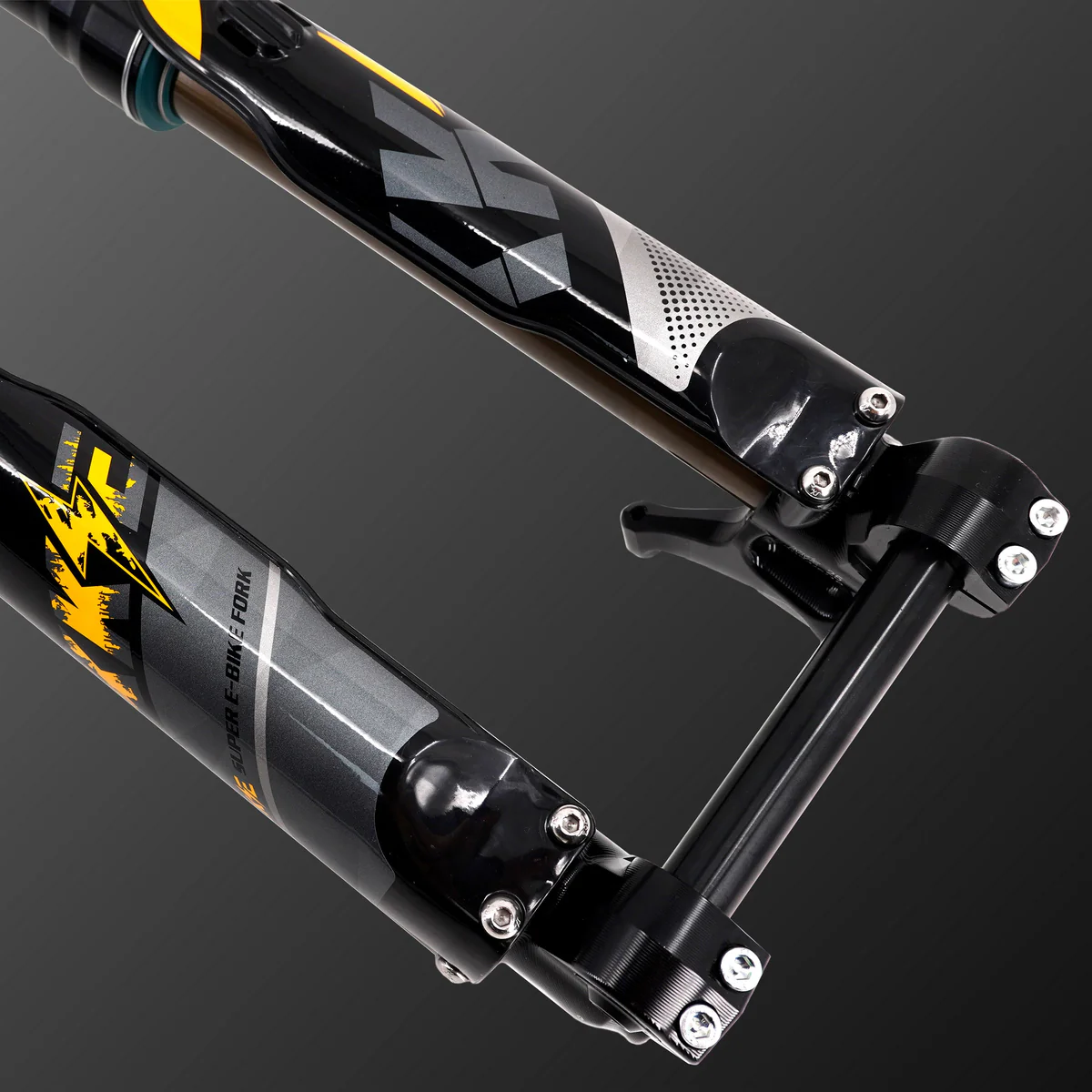

KKE 37MM Front Fork Suspension

$699.00

Categories: Front Suspension - Forks, Suspension Upgrades Brand: KKE

Description
Reviews (0)

DROP SHIPPED FROM KKE NOT AVAILABLE LOCALLY

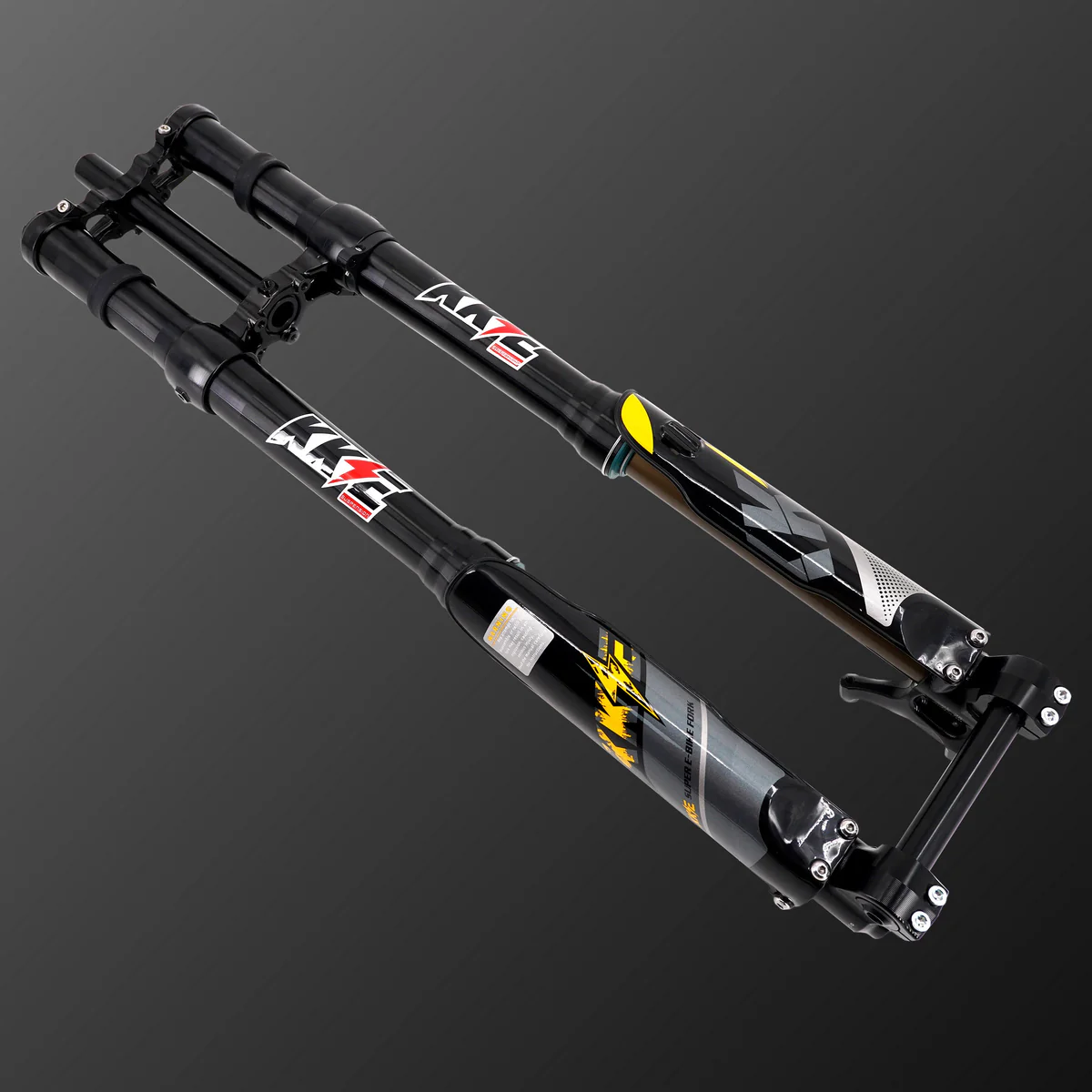

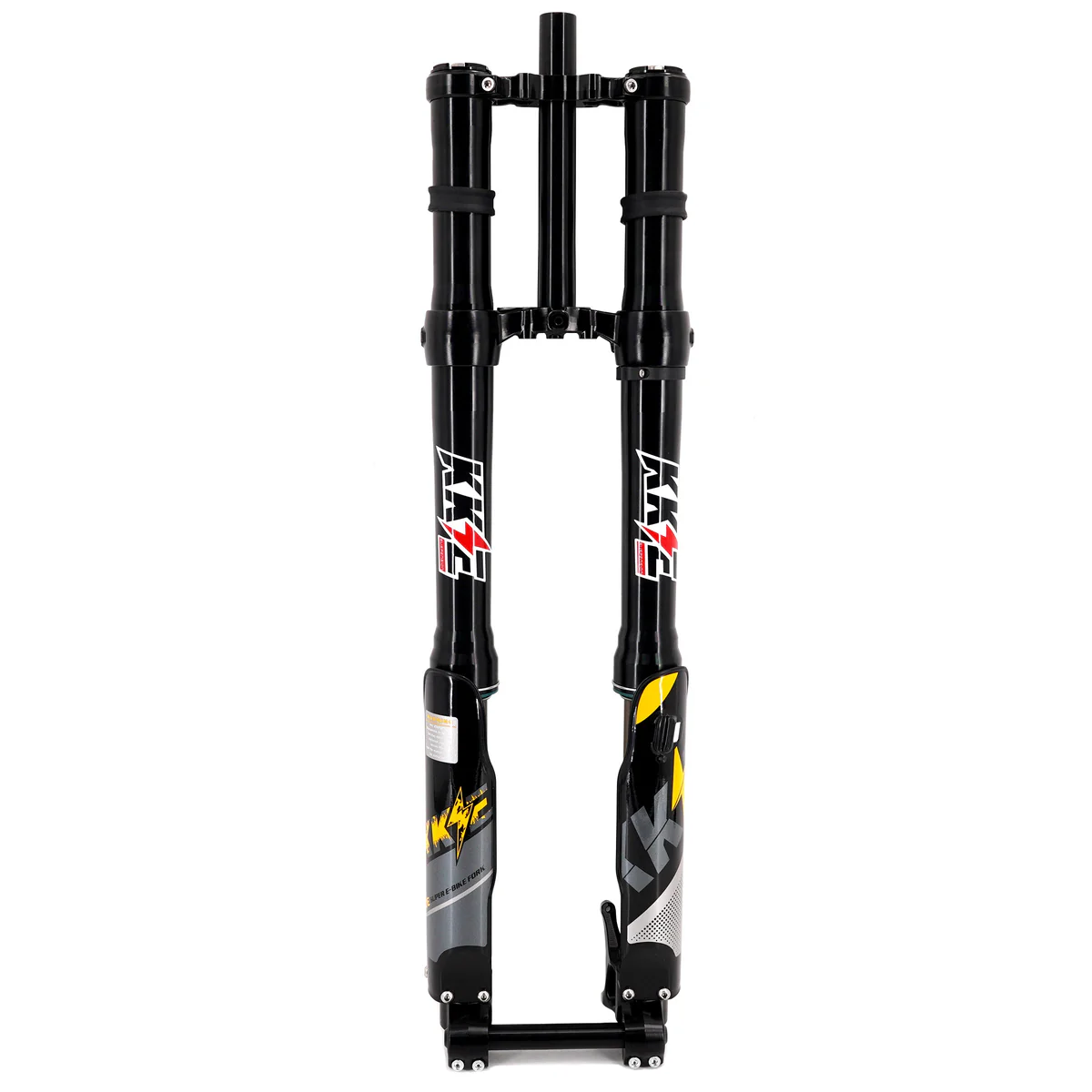

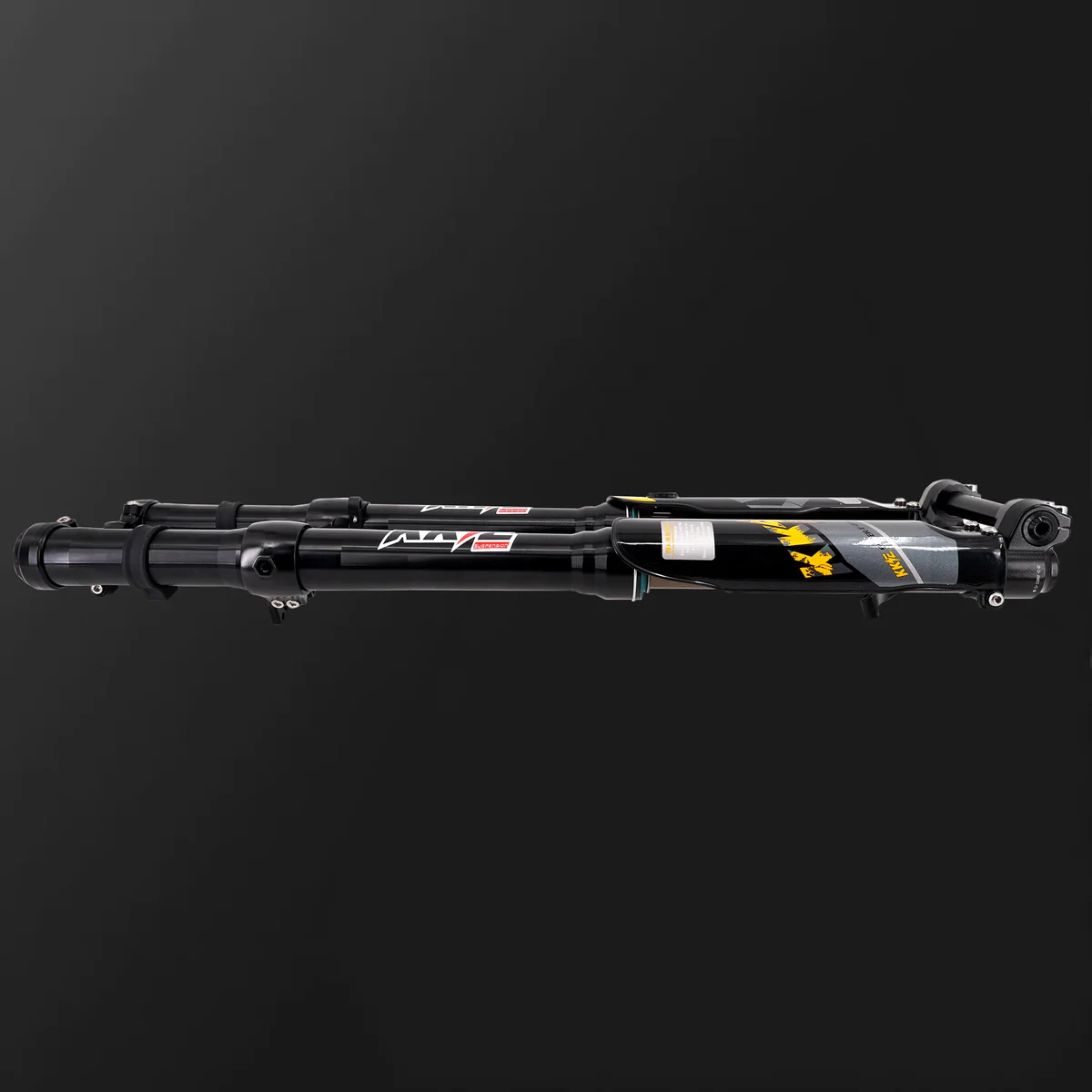

KKE Performance 37mm Front Fork For Surron, E Ride Pro SS, and Talaria Sting MX3 / R MX4

Our take on this fork: it’s massively built-up/stronger vs the OEM Surron fork, taller than most forks at 210mm of travel, and has SKF seals out of the box. This is a tremendous fork for the money.

With springs in both legs, this fork benefits from KKE’s Ultra Bee Performance fork design (which is fantastic).

If you are NOT using a stem lock please be aware that a star nut is not included please be sure to either add one to your cart or purchase a w9 stem lock to your order.

Specifications:

Weight: 5.3kg (include triple clamp set)
Travel: 210mm
Stanchion: 37mm Aluminum

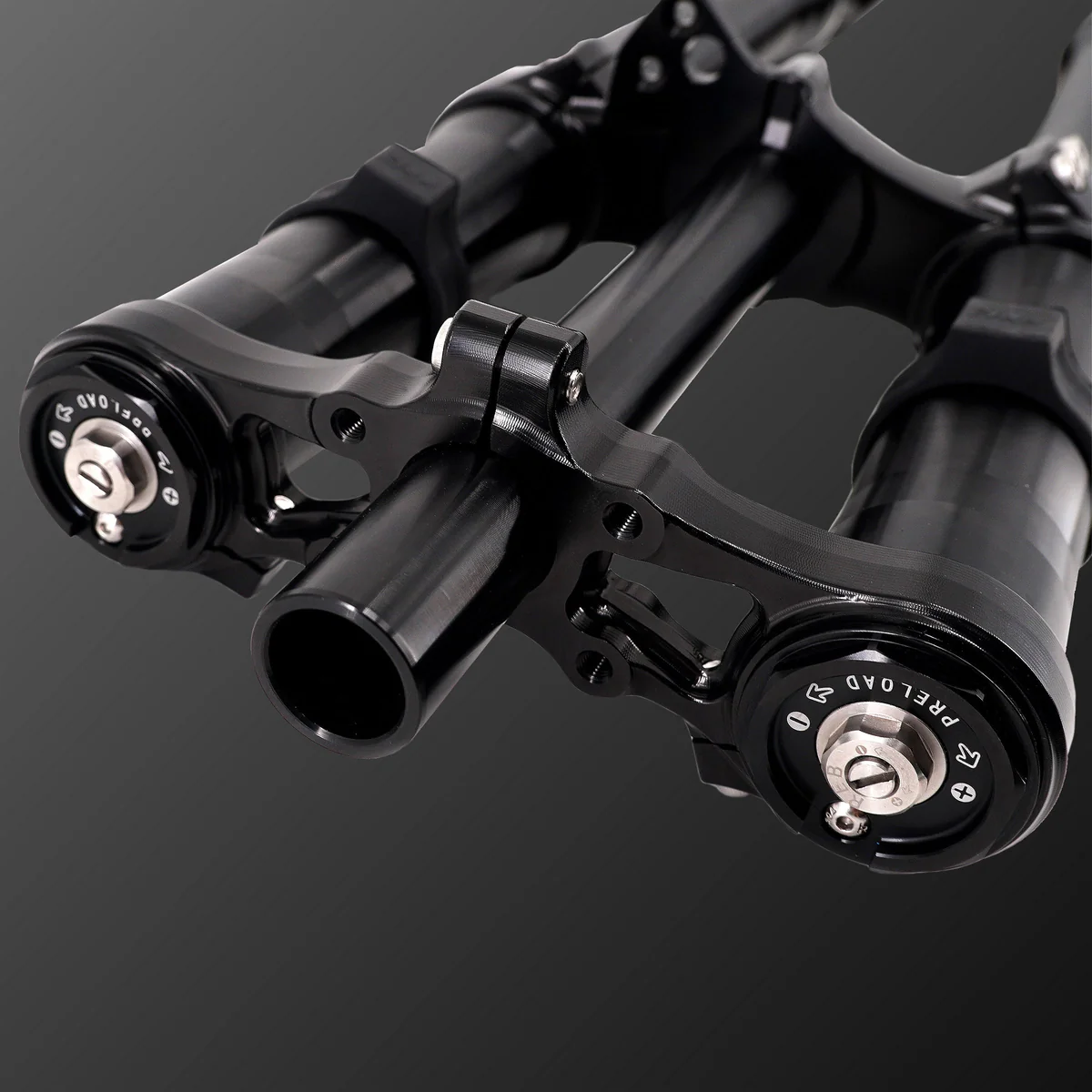

Adjustments: Compression, Rebound, Preload

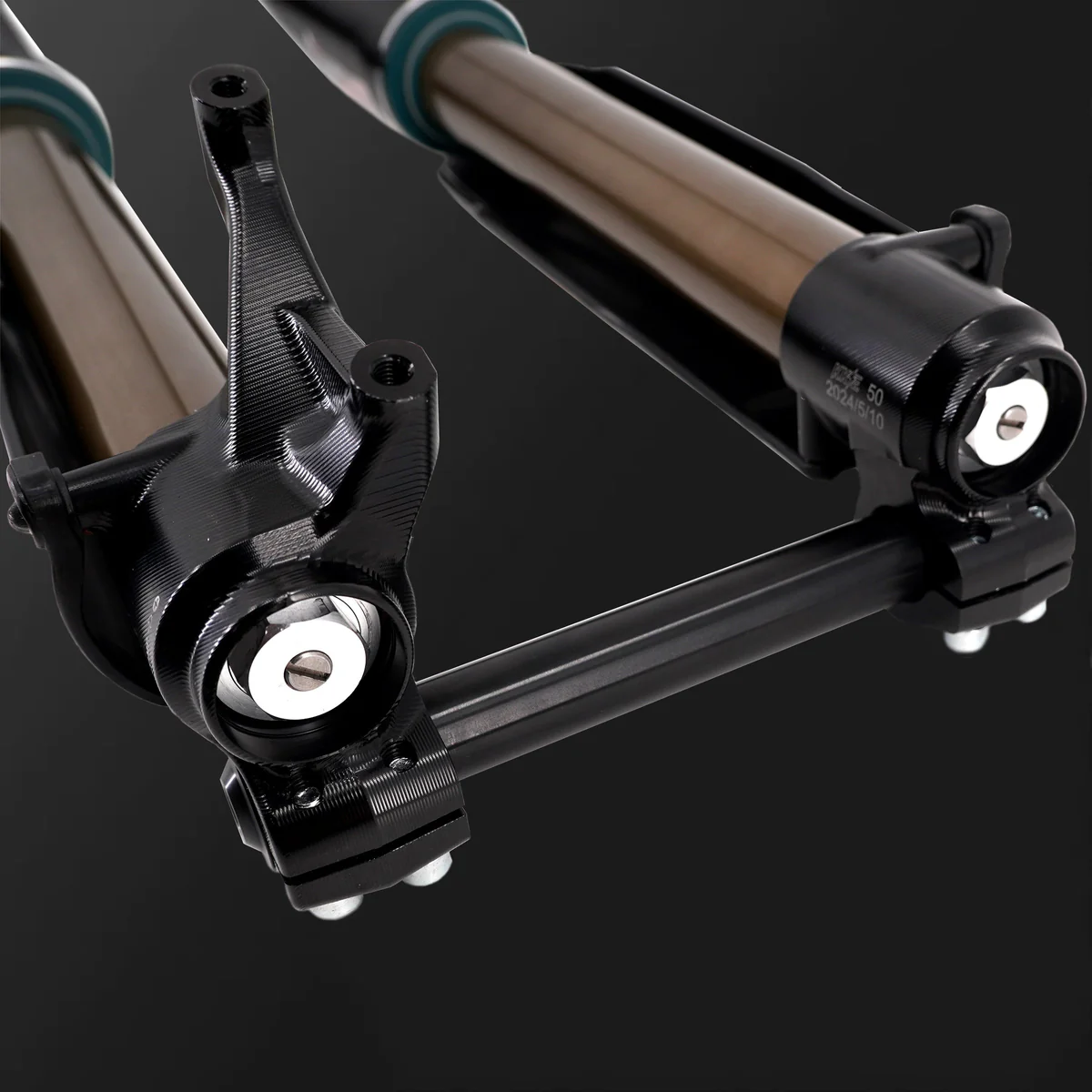

Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
Coil Spring – 23Ibs in both fork legs (46lbs total)

Features:

Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing
SKF oil seals and dust seals for less friction smooth feel
Alloy fork tube with DU-bushing guiding design, better stiffness and torsional rigidity
7000 alloy inner tube with hard-anodizing treatment surface
Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end
Every clicker of the compression/rebound / adjustment will find its way in different scenario

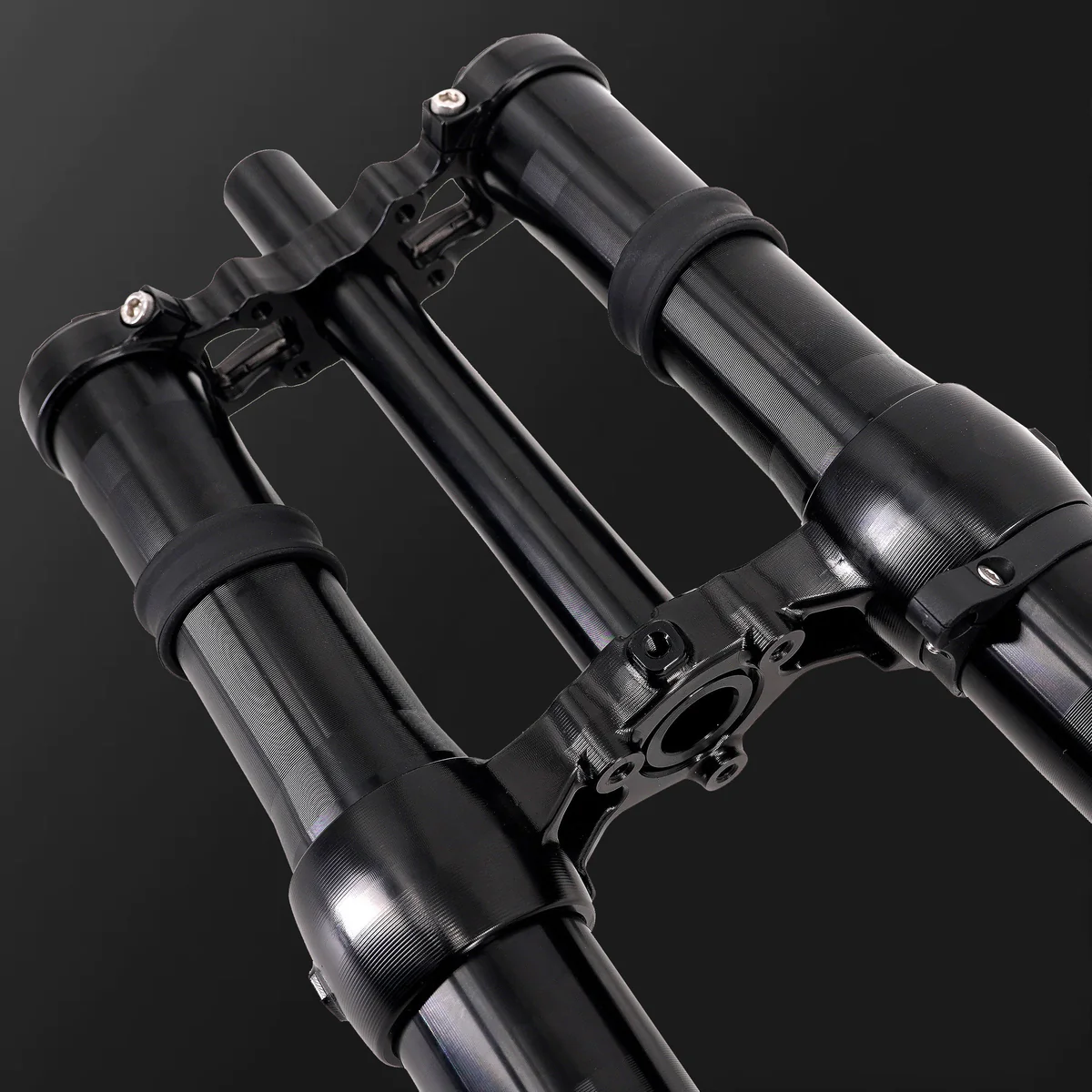

CNC triple clamp ,less weight ,more stiffness ,better looking

Fits 175pounds~220 pounds Riders Weight

Fitment:

Talaria Sting MX3 / MX4 / R
E-Ride Pro-SS 2024
Surron Light Bee

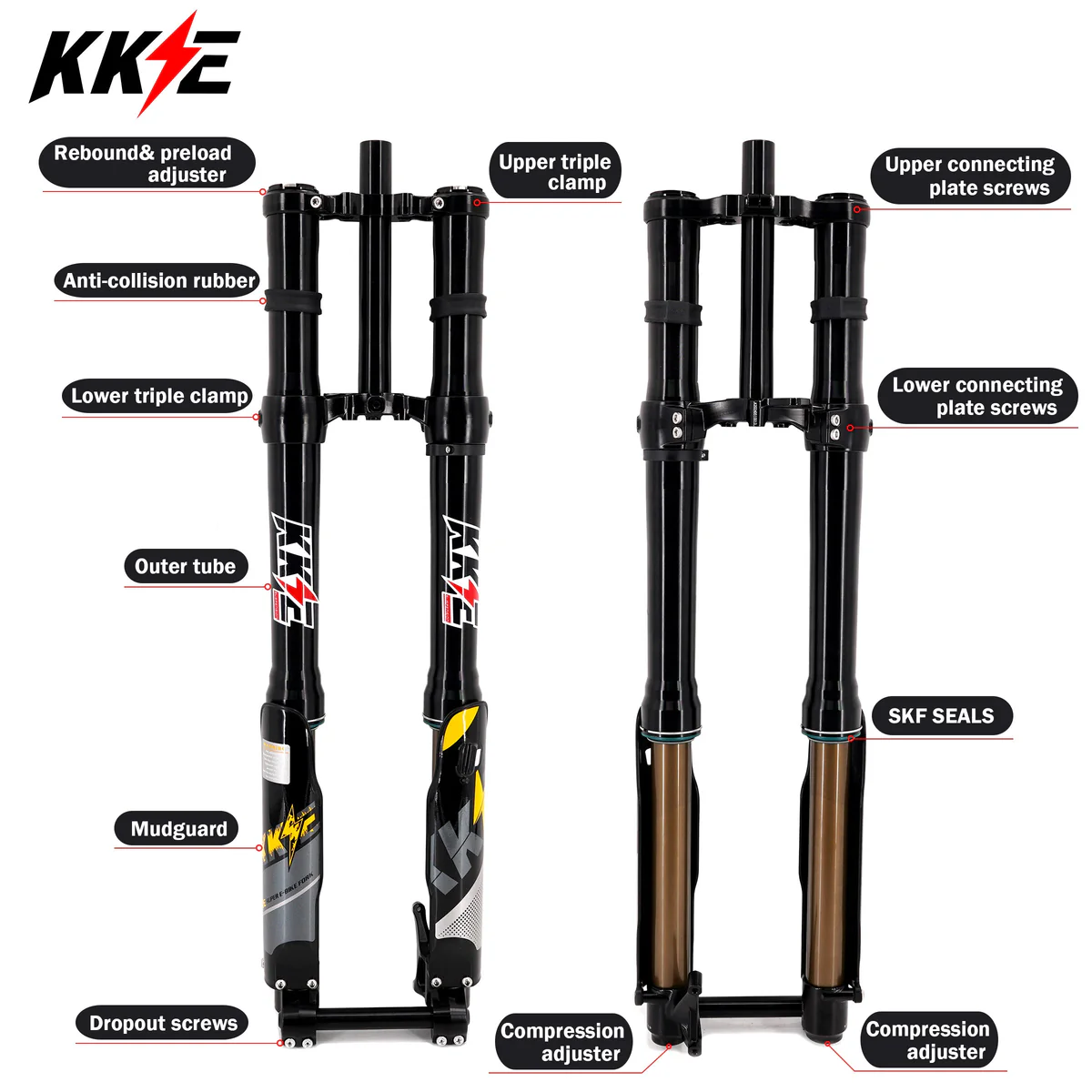

Specifications:

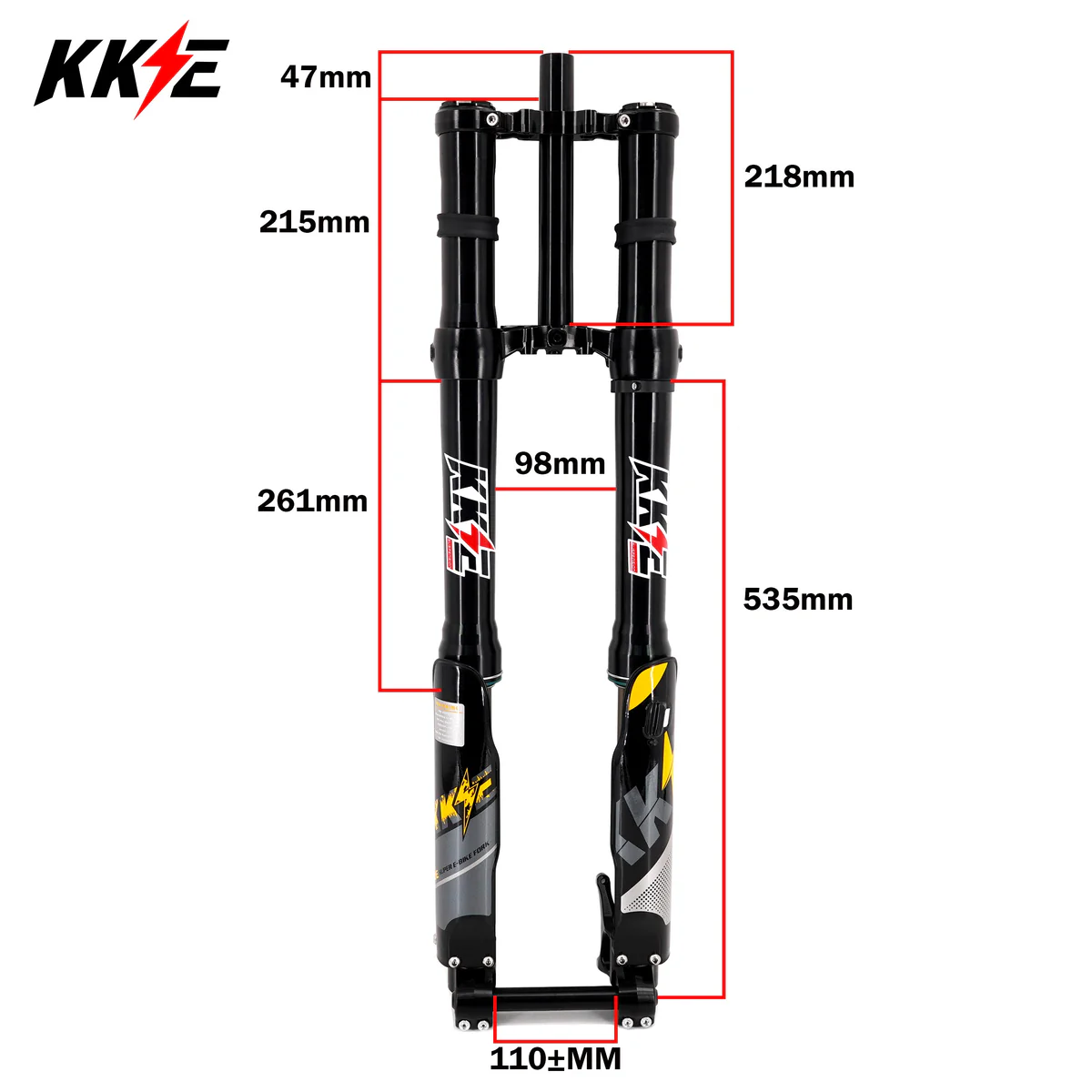

Length （Axle to Crown): 750mm
Travel: 210mm
Fork Offset: 32mm
For Rider Weight: 23lbs Spring Fit 175pounds~220pounds riders weight
Architecture: Upside down fork
Stanchions: 37mm, 7000 aluminum hard anodized coating
Outer tubes: 6069 aluminum, anodized black
Dropouts: 6061 aluminum, anodized black
Triple clamps: 6061-T6 aluminum, CNC-machined finishing
Steer tube: 28.6mm,6061-T6 aluminum
Damping: Symmetrical, adjustable open cartridge
Damper bodies: 7050-T6 aluminum, anodized coating
Weight: 5.3kg(include triple clamp set)
Adjustments: Compression, Rebound,Preload
Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
Seals: SKF
Guards: PP
Spring: Coil

Features:

1. Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing

2. SKF oil seals and dust seals ,less friction ,more smooth

3. Alloy fork tube with DU-bushing guiding design ,better stiffness and torsional rigidity

4. 7000 alloy inner tube with hard-anodizing treatment surface

5. Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end

6. Every clicker of the compression/rebound / adjustment will find its way in different scenario

7. CNC triple clamp ,less weight ,more stiffness ,better looking

Recommendation for Riders:

KKE Front Fork assembly with 23Ibs Spring Fit 175pounds~220 pounds Riders Weight
Note: If you have any other request or over weight, please feel free to contact us for more details

Fitment:

Fit Talaria Sting MX3 / MX4 / R
Fit E-Ride Pro-SS 2024
Fit Surron Light Bee

Package Included:

Assembled Front Fork 1set
Note: We matched left mudguard & right mudguard, Not installed!

Color:

Black

Placement on Vehicle:

Front Fork

Maintenance:

Your fork requires periodic maintenance, cleaning, and inspection. Torque values of bolts and fasteners must be checked periodically, more often if riding in extreme conditions. To maintain top performance, it is recommended that the fork be periodically disassembled, cleaned, dried and re-lubricated.

SUGGESTED SERVICE INTERVALS FOR DORADO
(Extreme riding and harsh conditions may require more frequent service)
