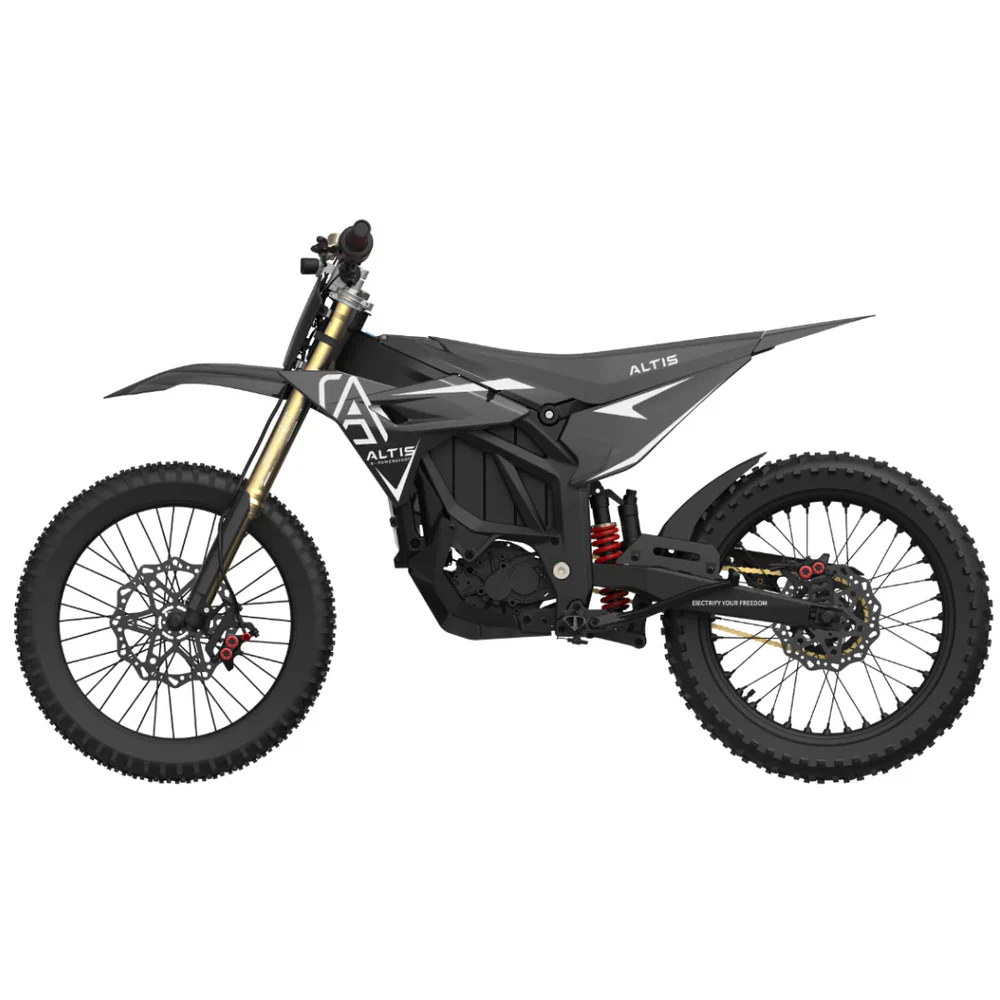

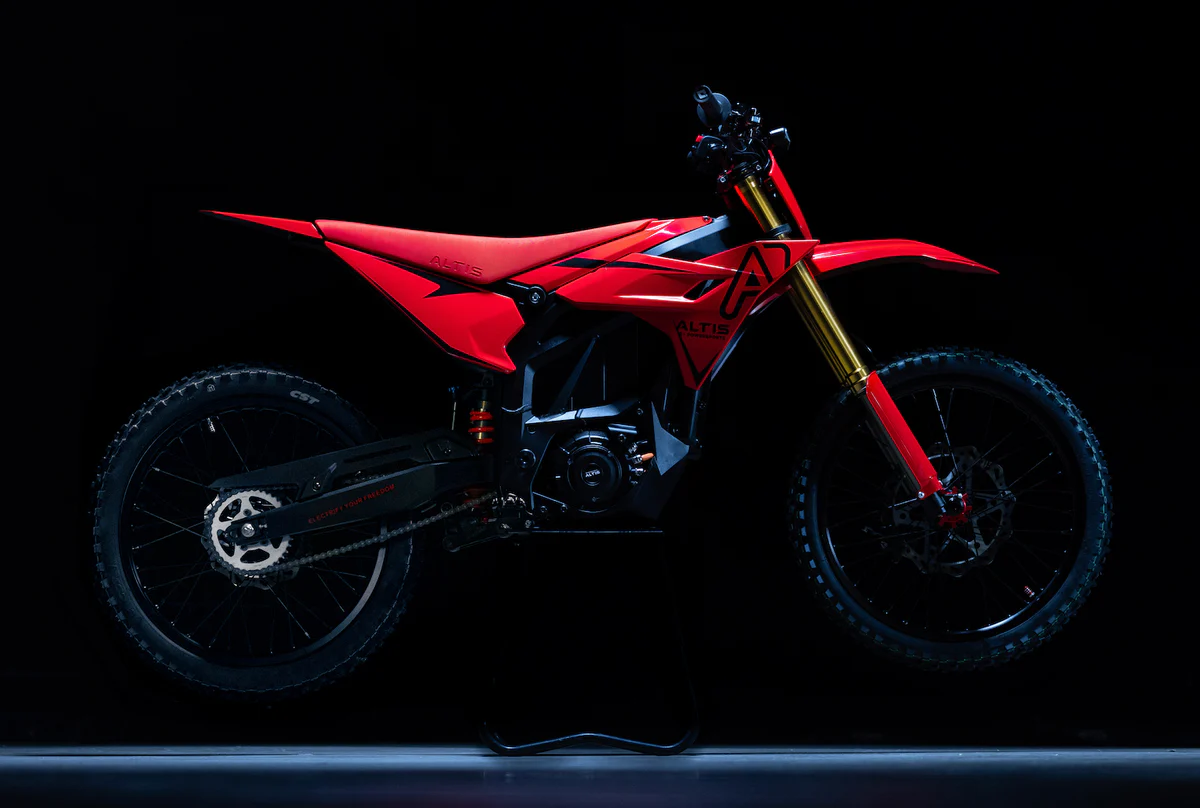

Altis has set out to completely change the game with the Sigma. A revolutionary step in the play bike category, this 96v motocross-inspired electric motorcycle sets a new standard for power, range, and capability.
Looking to finance a bike purchase? Apply here!

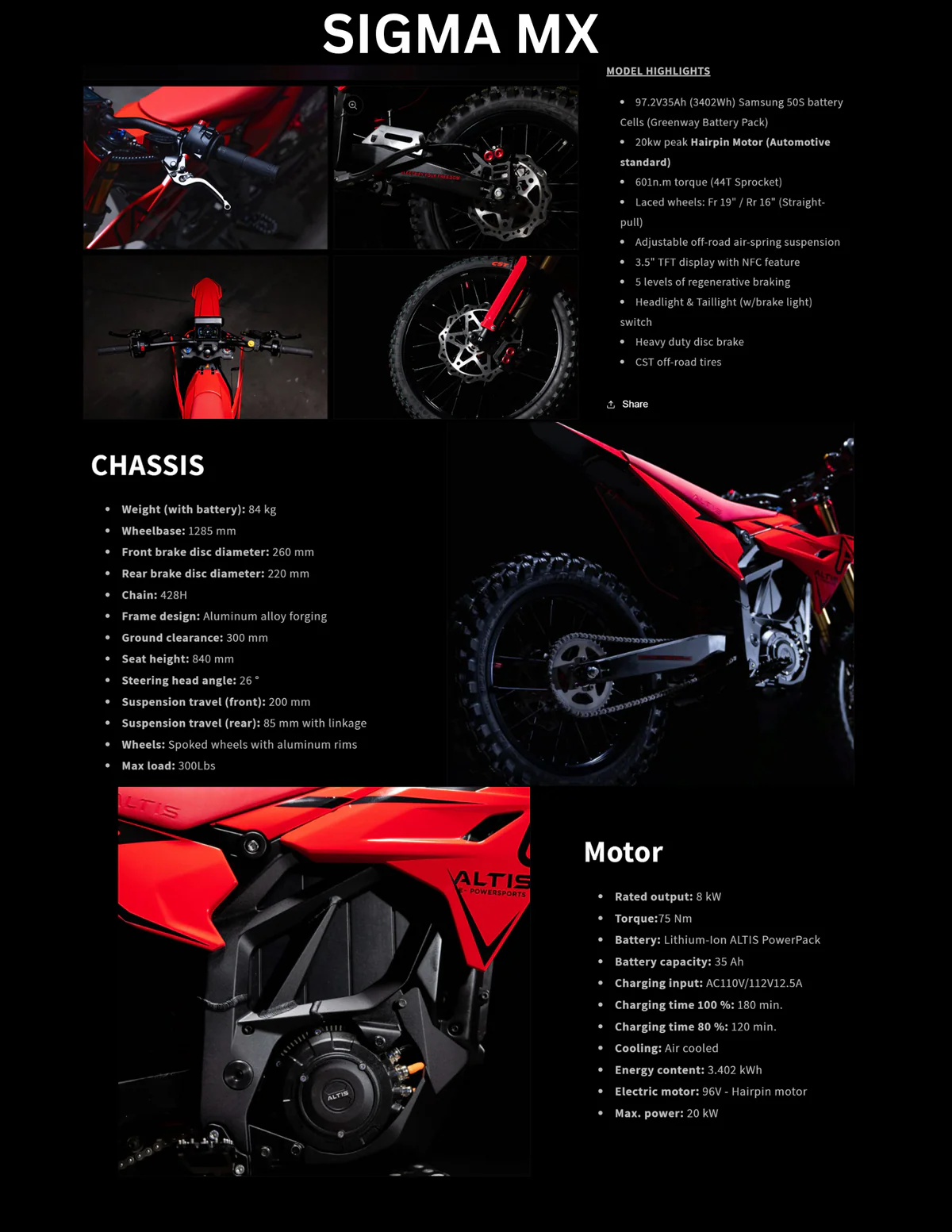

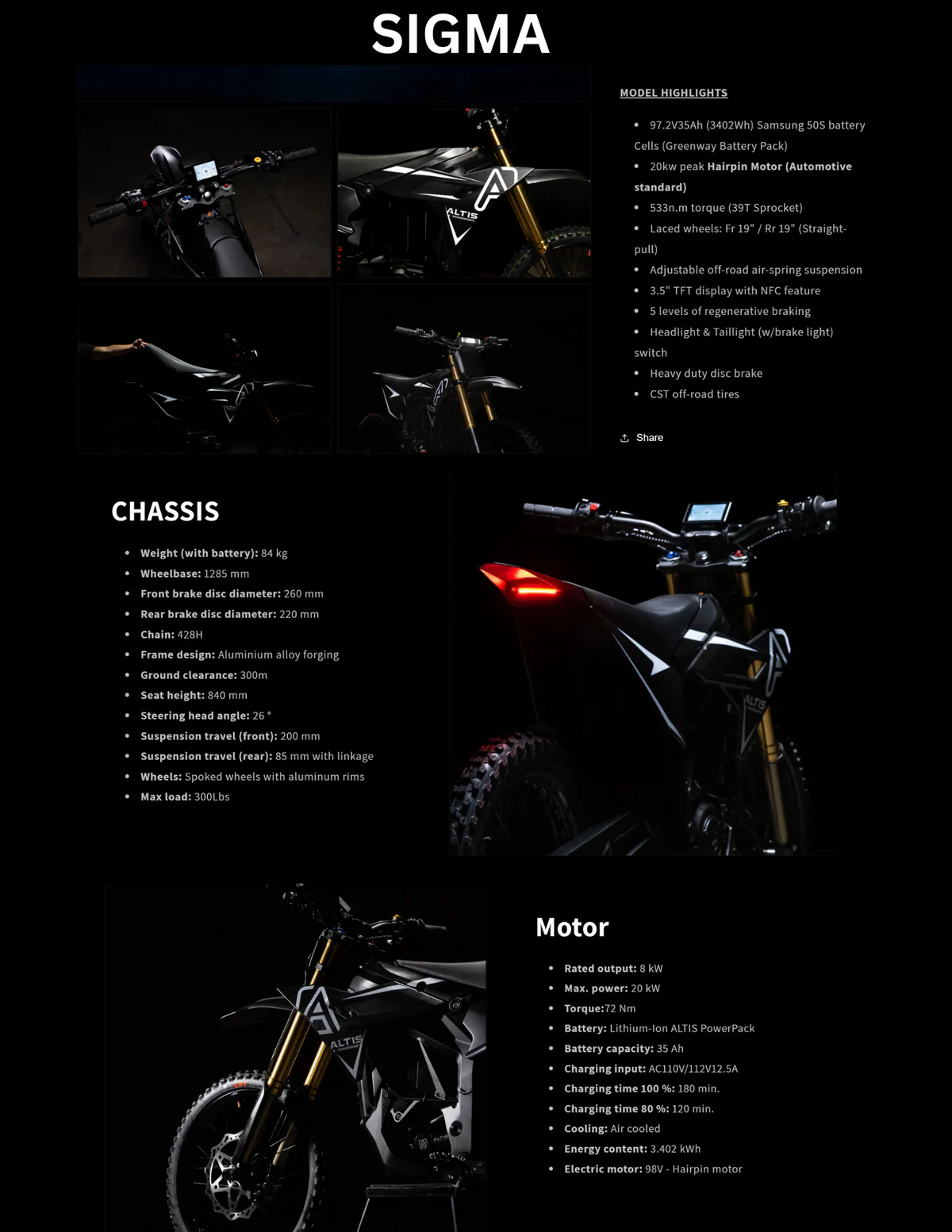

Available in 2 configurations: the 19″ rear wheeled Sigma and the 16″ rear wheeled Sigma MX (perfect for off-road riders). The cutting-edge drive train is impressive, with 22kW peak and 443 lb-ft (601 Nm) of torque from a 97.2V 35Ah (3402Wh) Samsung 50S battery. Check out the specs below.
MODEL HIGHLIGHTS
97.2V35Ah (3402Wh) Samsung 50S battery
Cells (Greenway Battery Pack)
22kw peak Hairpin Motor (Automotive
standard)
601n.m torque (44T Sprocket)
Laced wheels: Fr19″ / Rr 16″ (Straight-
pull)
Adjustable off-road air-spring suspension
3.5″ FT display with NFC feature
5 levels of regenerative braking
Headlight & Taillight (w/brake light switch)
Heavy duty disc brakes
CST off-road tires
CHASSIS
Weight (with battery): 185lbs
Wheelbase: 50.6 in
Front brake disc diameter: 260 mm
Rear brake disc diameter: 220 mm
Chain: 428H
Frame design: Aluminum alloy forging
Ground clearance: 11.8 in
Seat height: 33 in
Steering head angle: 26°
Suspension travel (front): 200 mm
Suspension travel (rear): 85 mm stroke with linkage
Wheels: Spoked wheels with aluminum rims
Max load: 300Lbs
MOTOR
Rated output: 8 kW
Torque: 75 Nm
Battery: Lithium-lon ALTIS PowerPack
Battery capacity: 35 Ah
Charging input: AC110V/112V12.5A
Charging time 100 %: 3 hrs
Charging time 80 %: 2 hrs
Cooling: Air cooled
Energy content: 3.402 kWh
Electric motor: 96V – Hairpin motor
Max. power: 22 kW
ALL Altis SALES ARE FINAL, NO RETURNS. Bikes are sold in the box. If you are local to SLC Utah and want the bike assembled, add this $99 fee so the bike is built and ready to ride out of our showroom.
Due to increased credit card, PayPal, and other transaction fees, there is a non-refundable 3% cancellation fee ($165). Contact us using the website chat for details.
This Bike is for off-road use only and is sold with the speed/power limited via a governor to comply with federal, state and local laws. Customers who unplug or bypass this restriction do so at their own risk and takes full responsibility for ensuring proper use of the product to comply with applicable laws in the region it is ridden.
POTENTIAL FRAUD AND RISK POLICY
At Charged Cycle Works, we take your security seriously. In certain cases, orders placed through our website may be flagged as “Potential Fraud” by our automated system. This system evaluates multiple factors to ensure the safety of our transactions. If an order is flagged, we will request the customer to provide a valid photo ID to verify the purchase. The ID must meet the following criteria:
- Must be valid, not expired or undefined
- The ID of the buyer must match the credit card being used. No exceptions.
- The ID of the buyer must match the billing address provided during the order
- The ID must be recognized as an acceptable form of photo identification by the U.S. Government, including:
- U.S. Passport
- Driver’s License or state-issued ID card
- ID card issued by federal, state, or local government (with a photo, issue date, and expiration date)
- U.S. Military ID issued by the Department of Defense
- Military Dependent ID
- Native American Tribal ID
- Permanent Resident Card (Green Card)
Charged Cycle Works is unable to process flagged orders without a valid photo ID that meets these requirements. Any orders confirmed as fraudulent will be reported to the appropriate authorities, including the Federal Bureau of Investigation (FBI) Cyber Crimes Department, as well as, local authorities for Wire Fraud.
| Color | Red, Black |
|---|---|
| Wheel Size | Sigma MX 16/19", Sigma 19/19" |
